Course Content#

Inter-process communication is complex [independent memory space] and context switching is expensive [temporal locality], so threads were invented.

Threads#

A branch of a process [pthread], essentially a lightweight process.

• Convenient communication because multiple threads in a process share memory.
• Low context switching cost because memory is shared, so cache swapping is not required when switching threads.

pthread_create#

Create a new thread.

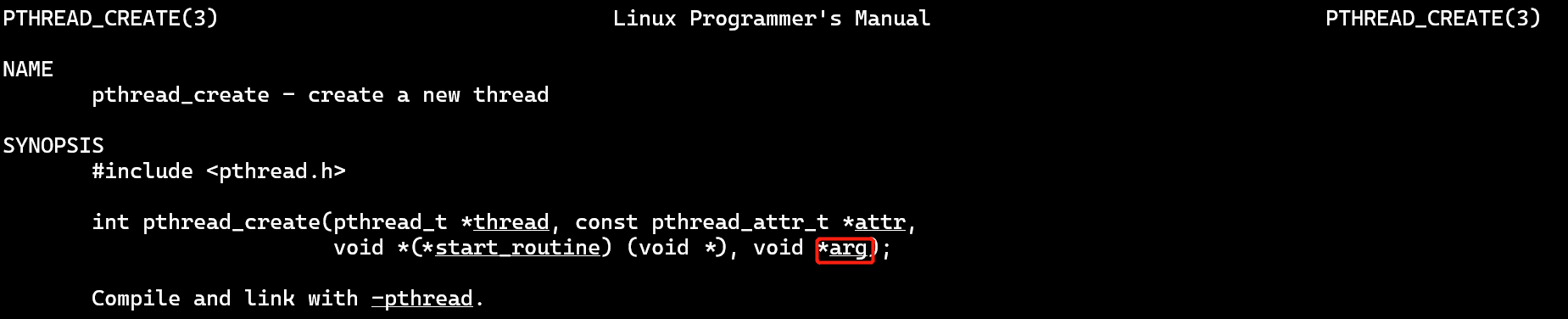

• man pthread_create
• Prototype
  •
  • thread: thread ID [Note: Not a numeric type, cannot be directly compared with ==, see pthread_equal]
  • attr: attributes
  • arg is the argument for start_routine

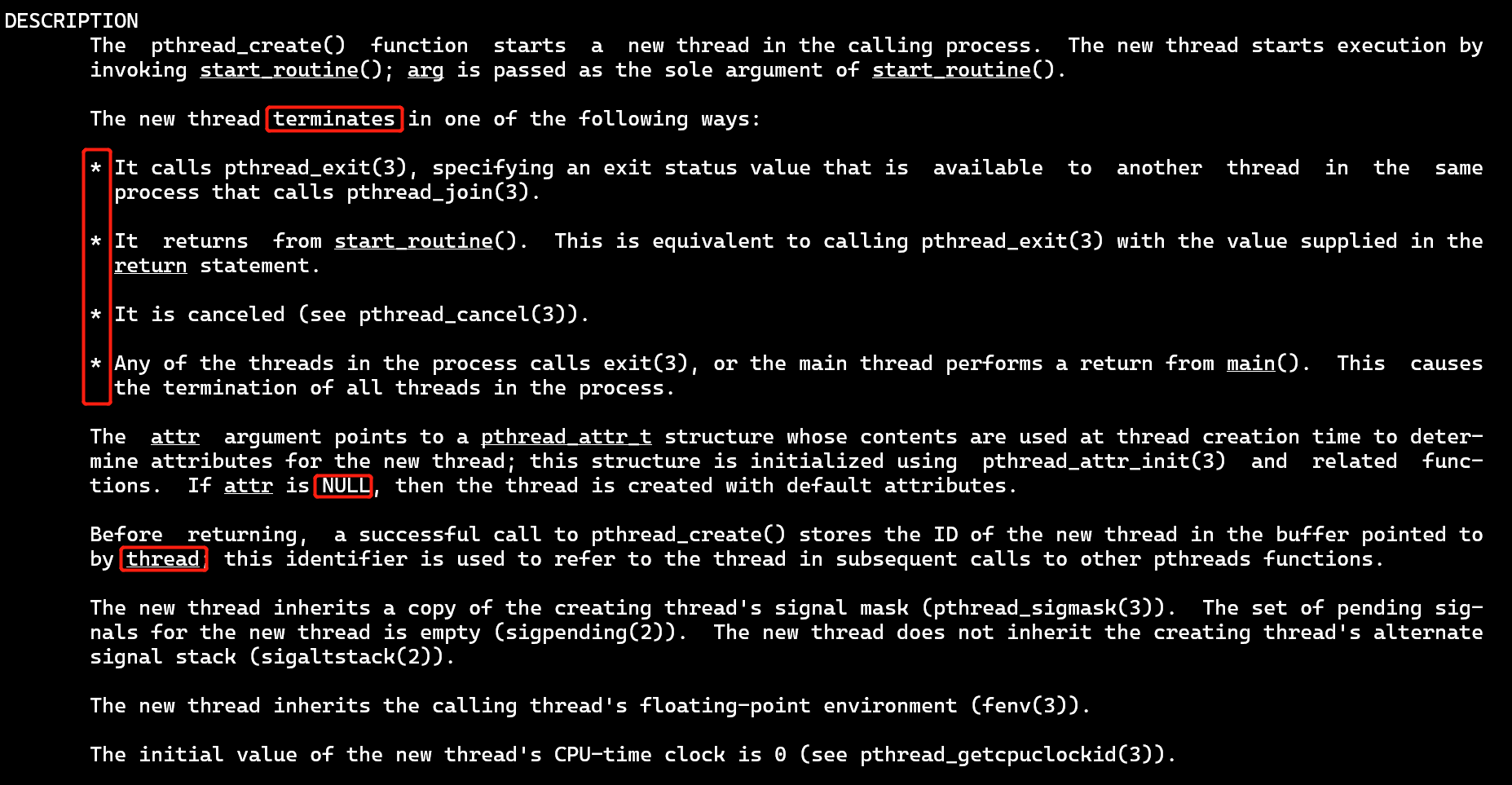

• Description
  •
  • Start a new thread and execute the start_routine function.
    • The start_routine function can only accept one arg parameter [multiple parameters can be encapsulated in a structure]
  • There are 4 ways for a thread to terminate [as a tool, the way of death is important]
    • ① Suicide: call pthread_exit by itself
      • Threads in the same process can use pthread_join to receive its death status [similar to wait]
    • ② Normal death: return from the start_routine function
      • Equivalent to pthread_exit
    • ③ Homicide: pthread_cancel
    • ④ Mutual destruction: one thread in a process calls exit, or the main thread returns from the main function
      • [PS] If a thread causes a memory crash, it is very likely to also result in mutual destruction, that is, all threads in the process die.
  • attr can be NULL, corresponding to default attributes.
  • After a successful call, the thread ID will be saved in the thread variable, and it can be used later through this ID [similar to file descriptor].
• Return Value
  • 0 for success; otherwise, failure.

——3 Ways to Terminate a Thread——#

pthread_exit#

Thread suicide.

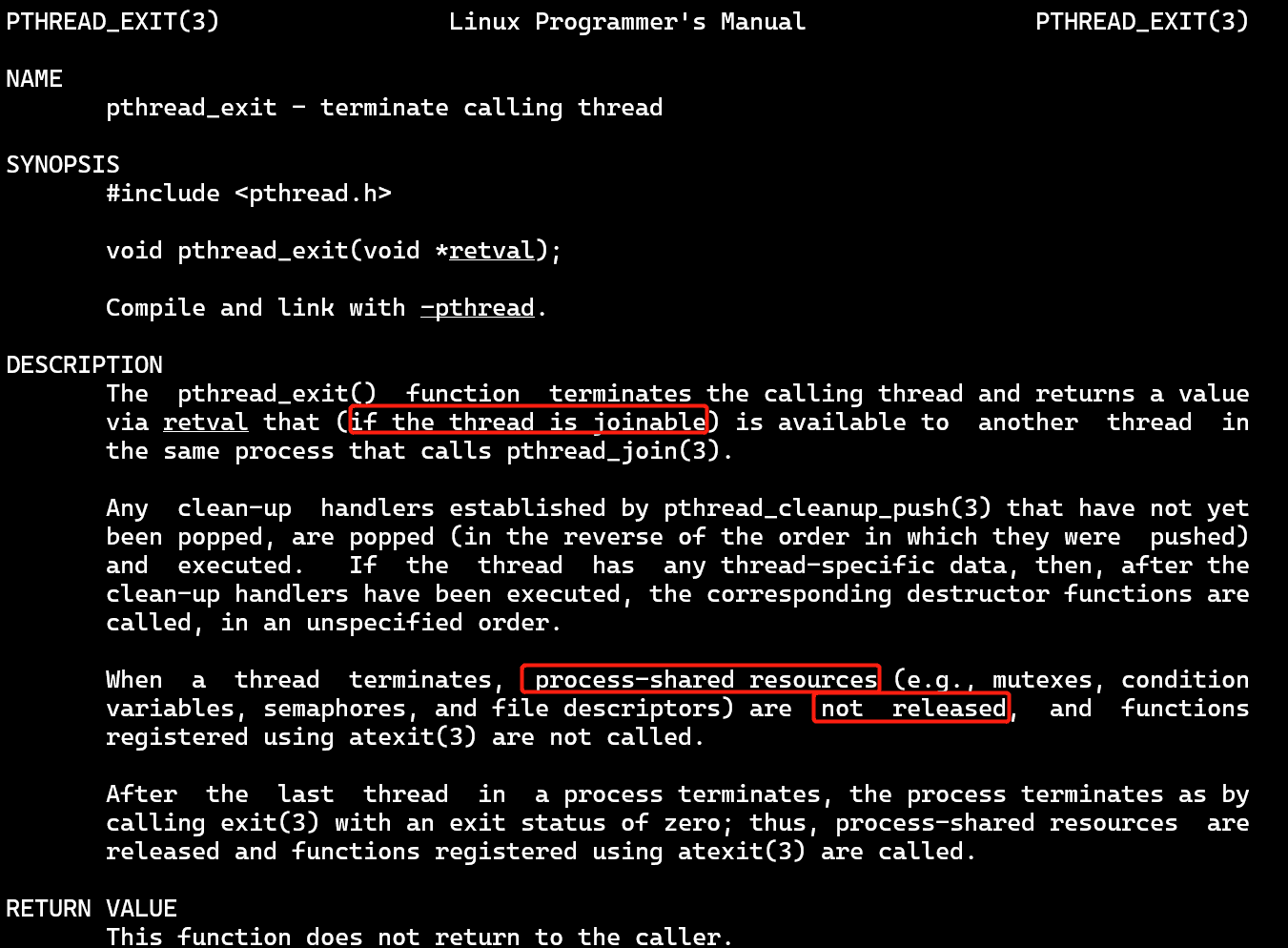

• man pthread_exit
•
• ❗ When a thread commits suicide, it passes retval to the joining thread [threads are joinable by default].
• After executing the function registered by pthread_cleanup_push, the thread-specific data is released.
  • Shared resources in the process will not be released [because there are sibling threads]
  • Functions registered by atexit will not be called [this belongs to the process]
• After the last thread ends, the process ends with exit(0), releasing the shared resources of the process and executing the functions registered by atexit.
• 【Note】Relationship between threads and processes

pthread_cancel#

Send a cancellation request to a thread [homicide].

• man pthread_cancel
•
• The possibility and timing of thread cancellation depend on two attributes: state and type.
• state
  • Killable [default]
  • Uncancellable: the received cancel command will be queued in this case.
• type
  • Deferred [default]: until the next call of the thread
  • Asynchronous: immediately, but the system cannot guarantee it.

exit [Process-related]#

Terminate a regular process.

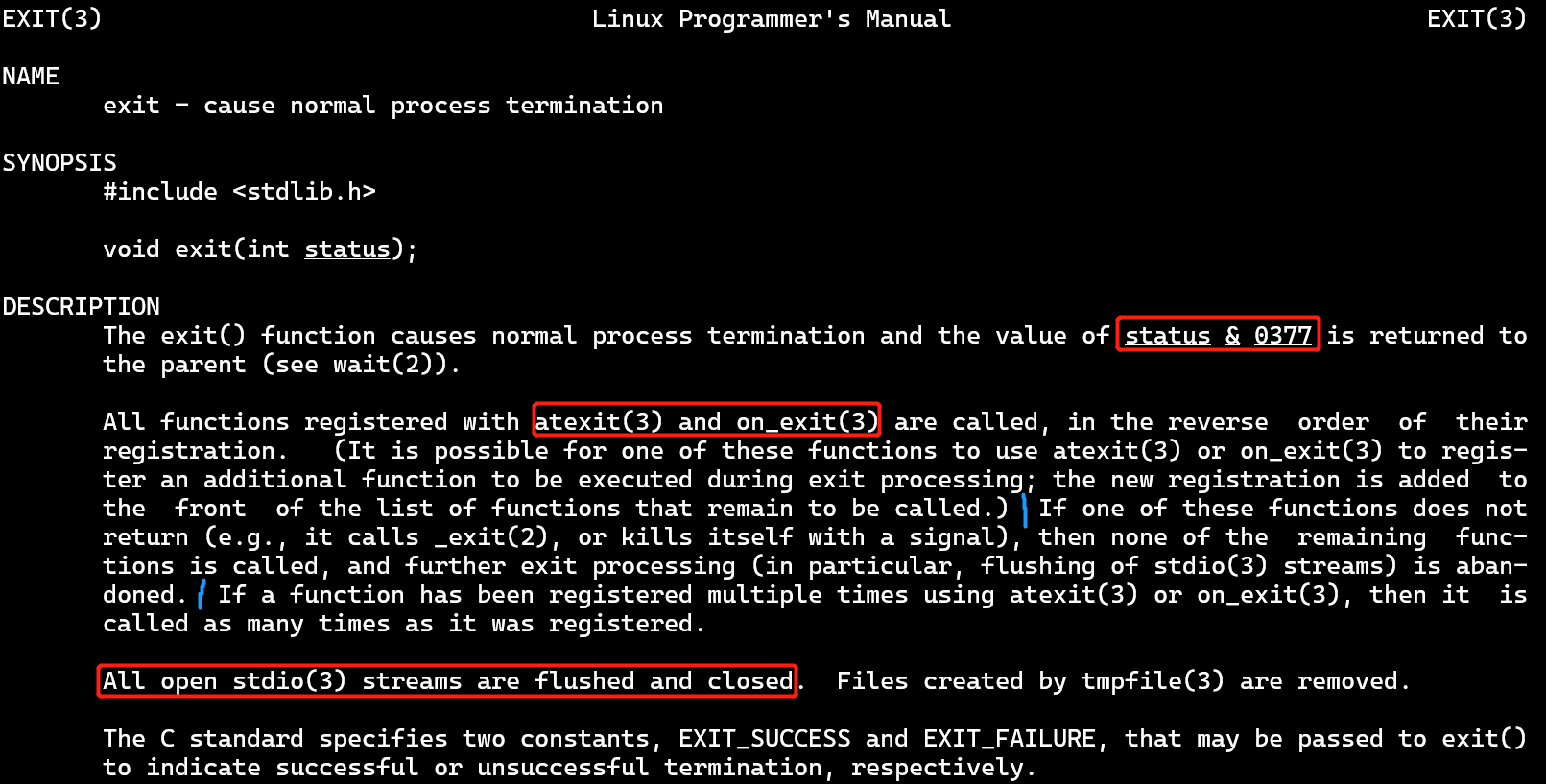

• man exit
•
• The value passed to the parent process is: status & 0377
  • Note: 0377 is octal, corresponding to eight 1s in binary, which means only the low 8 bits of status are retained.
• Functions registered by atexit and on_exit will be called in the opposite order of registration.
  • Nesting is possible: registered functions can have registrations themselves, and they will be placed at the beginning of the call list.
  • If a registered function does not return, such as calling _exit or committing suicide using a signal, the remaining functions will not be called, and the handling of exit-related operations will be disabled.
  • Multiple registrations will result in multiple calls.
• ⭐ After exit, all standard I/O streams are flushed and closed.

——Monitoring Thread Status——#

pthread_join#

Wait for a thread to terminate.

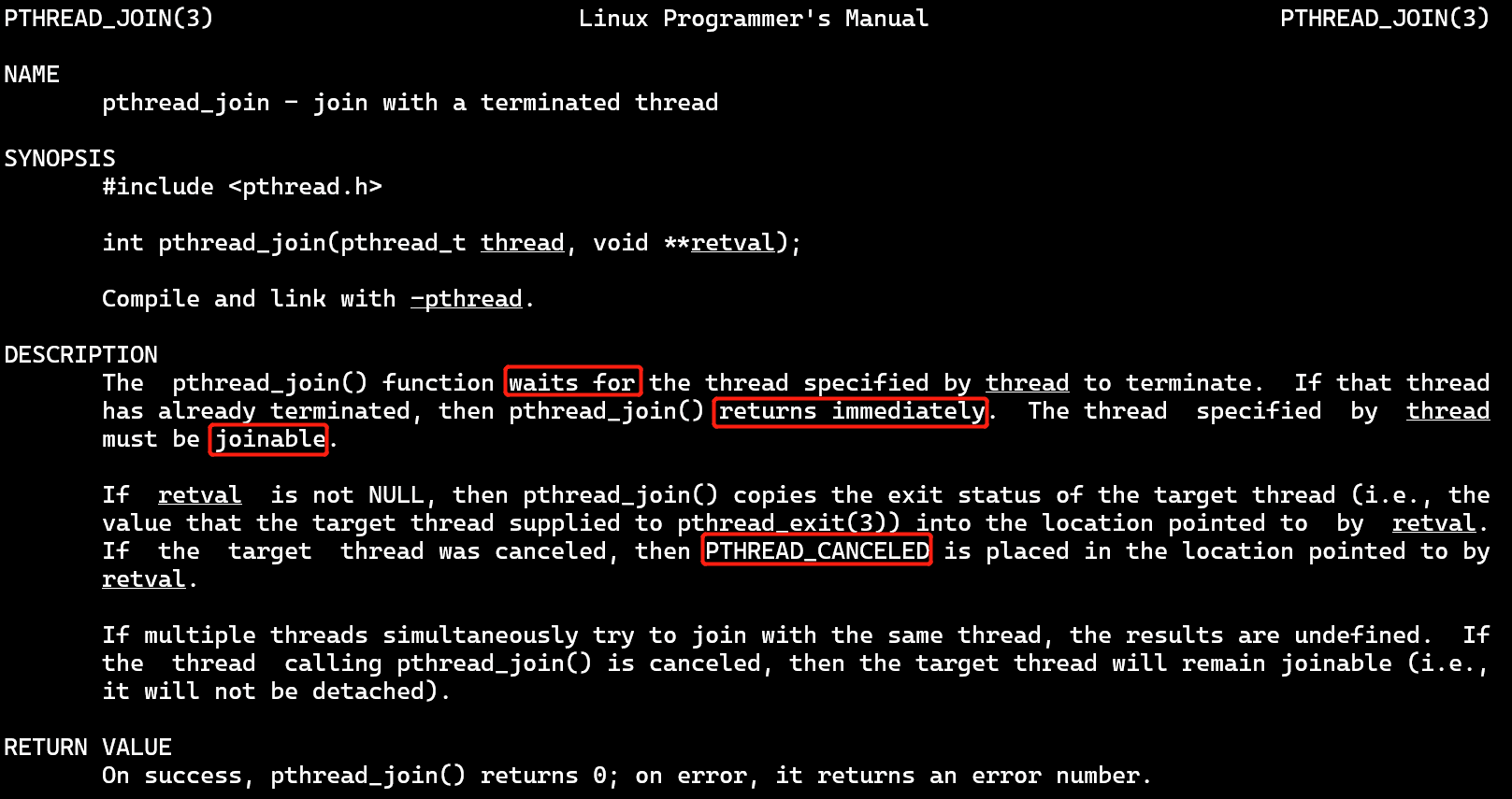

• man pthread_join
•
• Similar to the wait function in processes.
• retval receives the thread exit status.
  • If the thread commits suicide, it copies the retval value from pthread_exit.
  • If the thread is killed, it is assigned PTHREAD_CANCELED.
• [Consideration] Why is retval a double pointer here?
  • Surface reason: retval in pthread_exit is a pointer, according to convention, a double pointer should be used here [similarly, if the received data is an int, an int * should be used here]
  • Further reason: to be able to modify the passed pointer
  • There is a blog that also mentions this: Discussion on why the second parameter of the pthread_join() function is a double pointer - CSDN

pthread_detach#

Detach a thread.

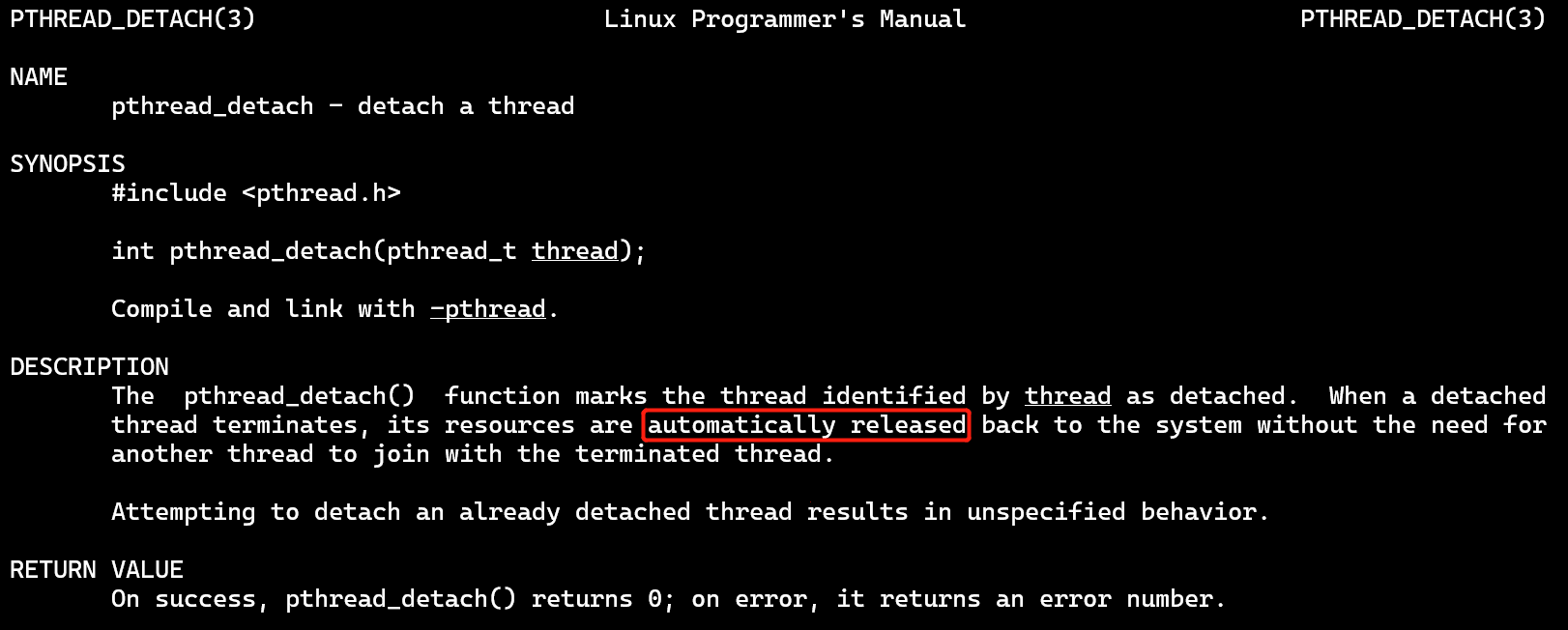

• man pthread_detach
•
• After a thread is detached, the system will automatically reclaim its resources when it terminates, without other threads blocking and waiting for it to terminate.
• Generally used with pthread_self to detach oneself.
  • pthread_self: get the ID of the calling thread [self]
• Refer to Detailed Explanation of pthread_join() and pthread_detach() - CSDN

——Additional——#

pthread_yield#

Yield the processor.

• man pthread_yield
• [Similar to the effect of sleep]
• This method is only used on some systems, and the more standard usage is sched_yield.
  • For cooperative systems, call this function to actively yield the CPU.
  • For preemptive systems, the kernel will schedule, and this function has little meaning. Sleep can also be used directly.
  • Cooperative and preemptive, see 4 Advanced Process Management - Scheduler Classification

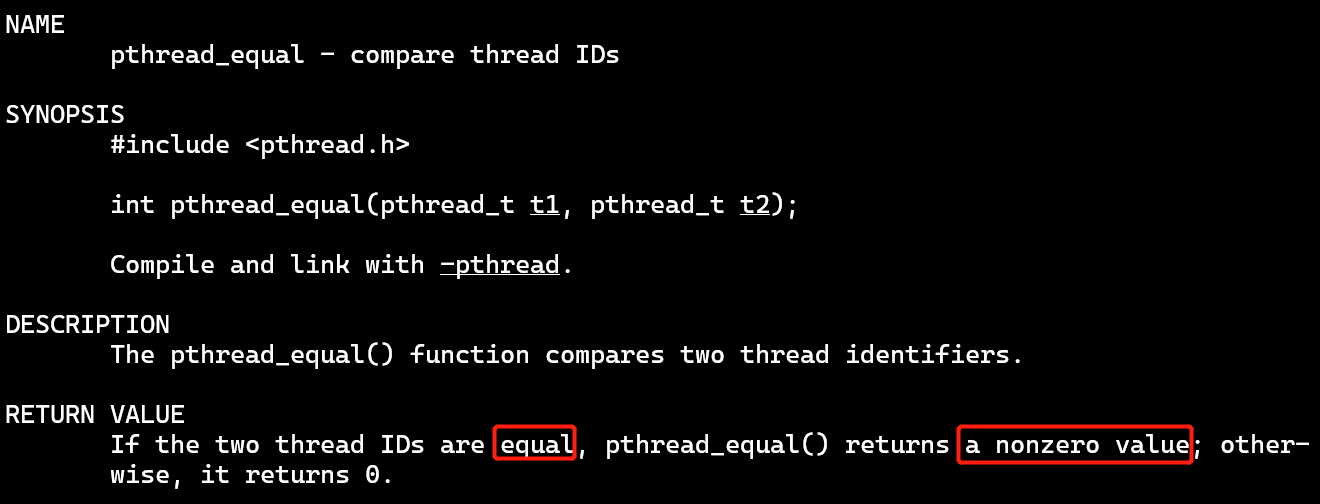

pthread_equal#

Compare the IDs of two threads [cannot be directly compared with ==].

• man pthread_equal
•
• Returns a non-zero value if they are equal.

Thread Pool#

Let a bunch of threads wait in a pool and work at any time.

Basic components👇

① Task queue: stores tasks to be processed.

• [Circular queue is better]
• Basic operations: init, push, pop

② Multiple threads: always ready, reducing the time for creation and destruction.

③ Thread function: do_work()

• while(1): wait for tasks to be added
  • 1. Task queue pop: pop out a task for the thread to execute
  • 2. do-work(): execute the task in the CPU

❗ Note: Locking is required for both push and pop to prevent data races [starving threads]

• See code demonstration for details.

Kernel Threads, User Threads#

Who creates threads? Thread model

• The difference between the two is mainly in scheduling: kernel threads are scheduled by the kernel; user threads are scheduled by user processes.
• Advantages of kernel threads
  • ① Each kernel thread has its own time slice. So a process with multiple threads will have more processor time because it has more threads.
  • ② If a kernel thread is blocked, the remaining threads in the process can continue to run. If a user thread is blocked, the entire process will be blocked.
    • PS: If a kernel thread sends a sleep signal to its own process, the thread can still continue to run.
• Advantages of user threads
  • ① Low context switching cost. There is no need to switch from user mode to kernel mode.
  • ② The scheduling algorithm is completely controlled by the process. User processes can use their own scheduling algorithms, so they have more autonomy; the scheduling of kernel threads is a black box to users.
• Therefore, a hybrid thread that has both kernel threads and user threads can be designed by combining the advantages of both.

Code Demonstration#

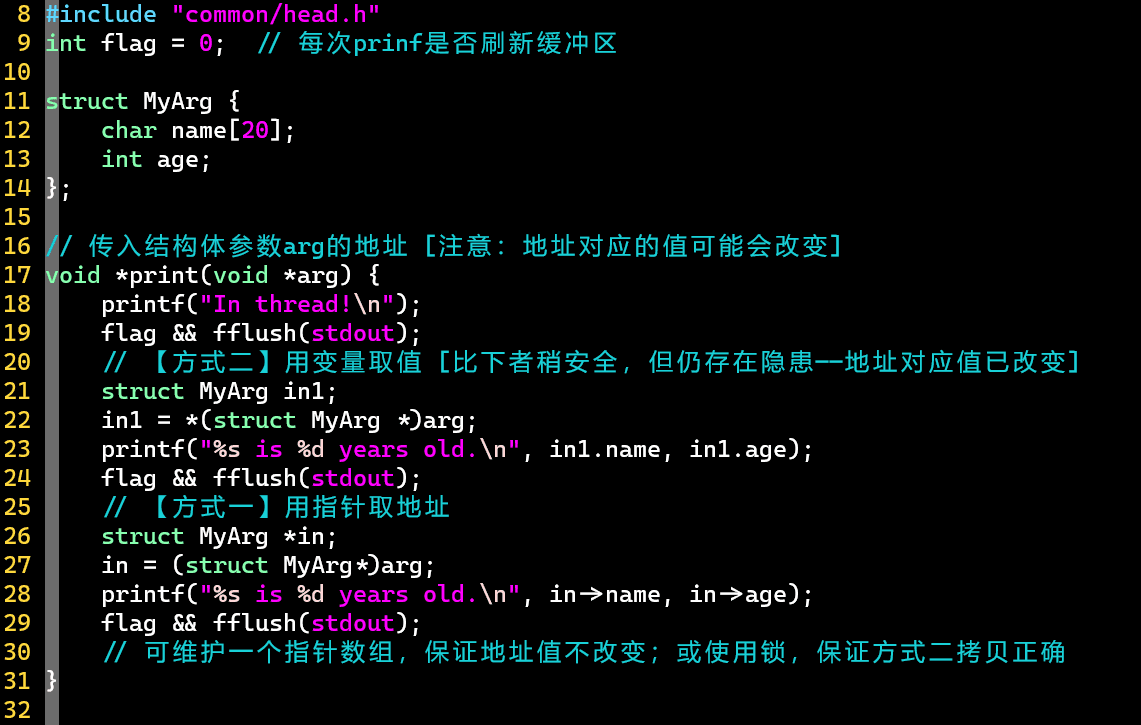

Simple Use of Multithreading#

•
•

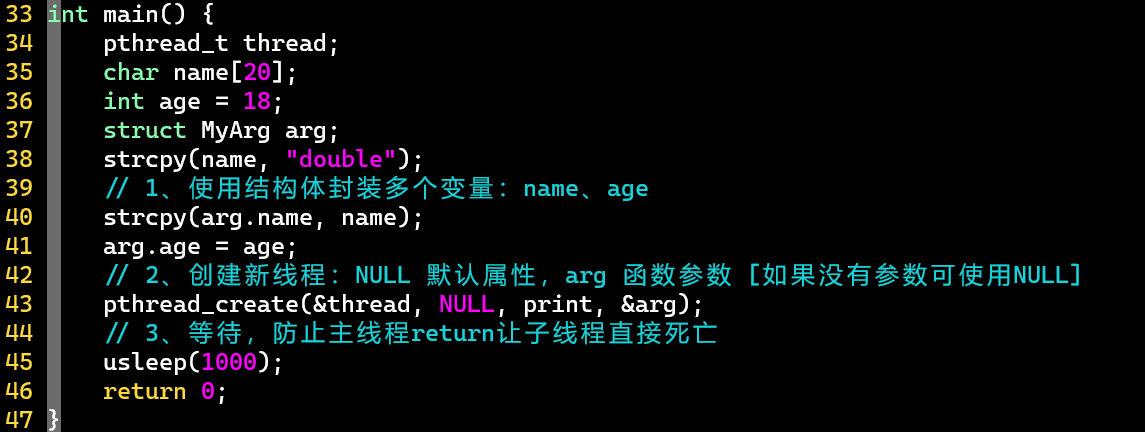

• Pay attention to the use of the pthread_create function.
• If there is no usleep after creating the threads, or the usleep time is too short, the following may occur:
  • The main thread returns, causing all child threads to die.
  • In this case, some outputs may appear twice, such as ① and ② [③ is the normal output]
  •
  • Guess: the problem of the output buffer, when the thread ends suddenly, it outputs the contents of the buffer again [the buffer has not been updated in time]
  • [PS] fflush cannot solve it either, maybe because the thread ends suddenly
• Note: all threads can operate on the same address value.

Thread Pool#

thread_pool.h

•
• Definition of the task queue and basic operations

thread_pool.c

•
•
• Note: locking, signaling; checking if the queue is full/empty; checking if the pointer has reached the end of the queue

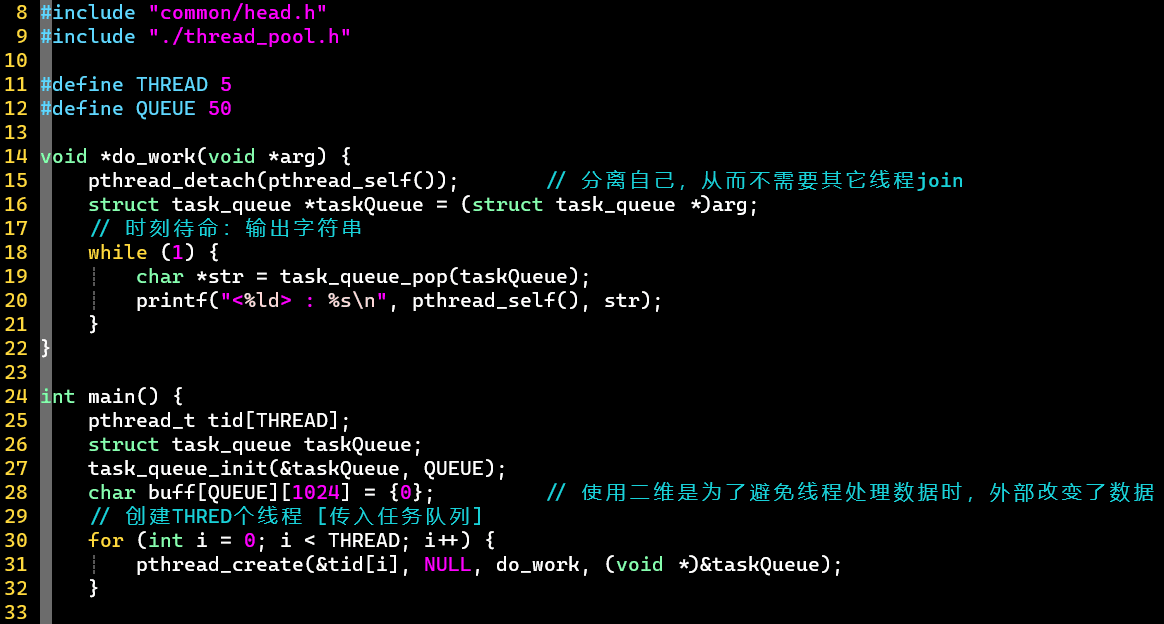

1.test.c

•
•

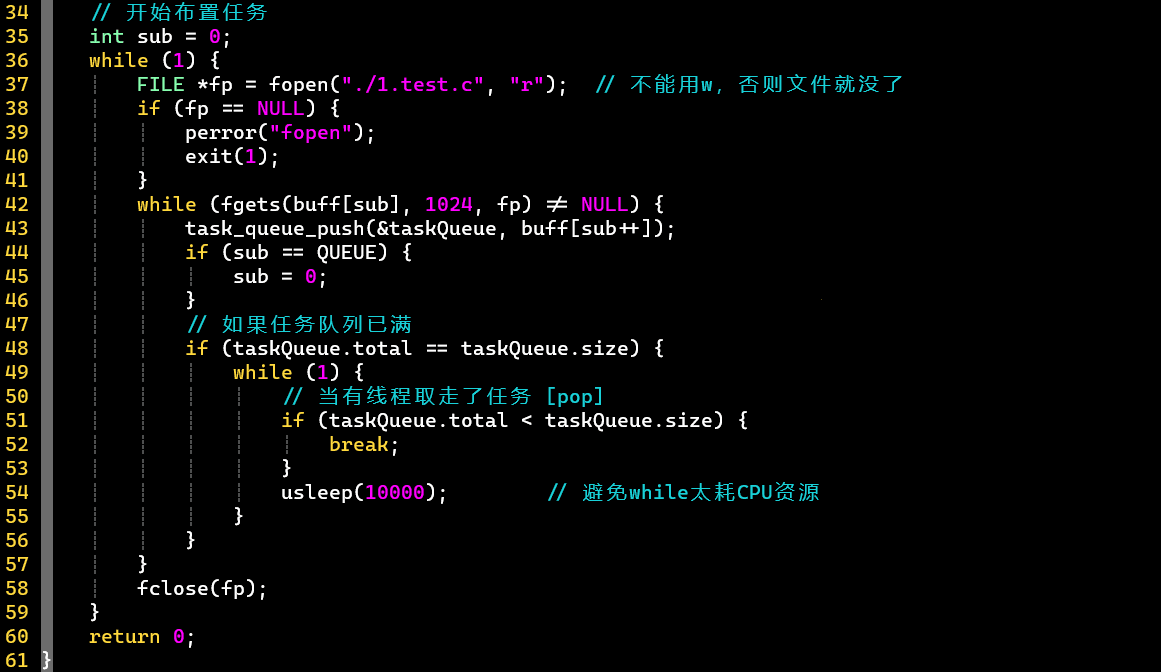

• The buff that stores data is a two-dimensional array, which can avoid the main thread changing the data through the address when the thread is reading the data.
• The magic of usleep: avoid consuming too much CPU time in the while(1) loop.
• pthread_detach is generally used with pthread_self.
• fgets: read file into buffer
  • man fgets
  •
  • Read line by line

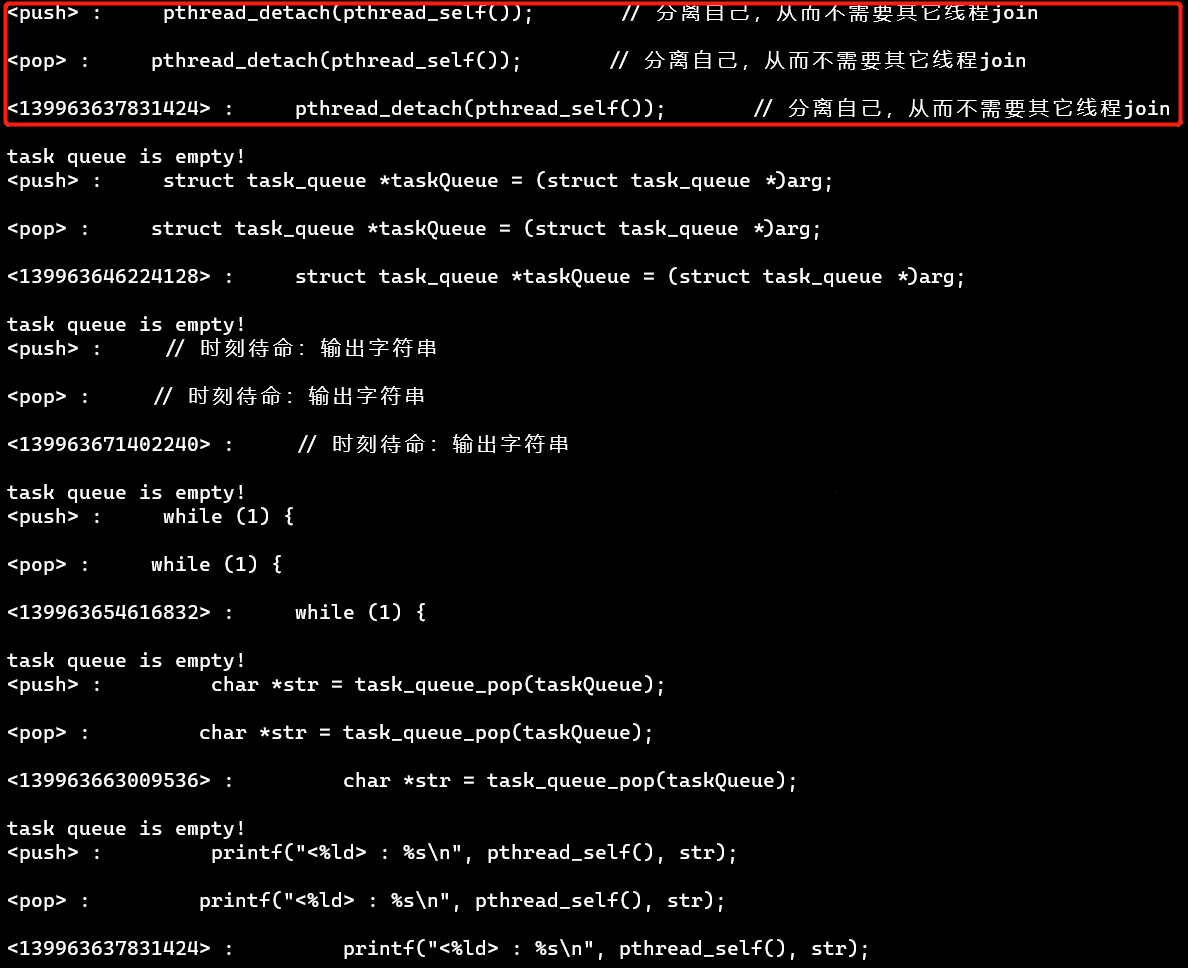

• Output effect
  •
  • Basic output: push [task queue output]; pop [task queue output] + do_work [thread output]

Additional Knowledge#

• When compiling files that contain thread-related functions, remember to use -lpthread.

Tips#

• Creating a process also represents a main thread.
• Multithreading still executes sequentially on a single CPU, so using multithreading on a single-core CPU is not recommended.
  • Refer to How do multi-threaded programs work on single-core CPUs and multi-core CPUs - cnblogs
