Experimental Environment: Ubuntu 18.04 remote server + WSL 2 local machine

Evaluation Description#

•

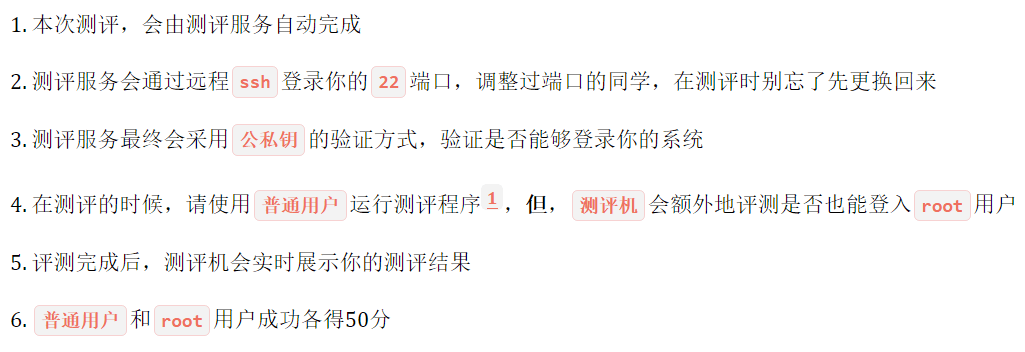

• During the evaluation process, you will need the data here: Public Key of the Evaluation Service

• Additional: What is the essence of passwordless login?

Final Result#

【Testing Locally】

•

• SSH hostname, passwordless login is now possible

• It's green again :)

Implementation Process#

Two Steps⭐#

【Generate Key Pair👉Copy Public Key】

• ① Generate public and private key [the one with .pub extension is the public key] on local WSL 2, using RSA encryption algorithm

ssh-keygen -t rsa

• • You can use ssh-keygen --help to view information about key types and other details
  • Passphrase is generally not required [used to encrypt the private key], unless you want to enter a password every time you login without a password
• ② Configure the public key on the remote server with a single command

ssh-copy-id ten

• • Here, "ten" is the alias of the remote server (the username is the same as the local user by default, otherwise you can use the format "hz@ten"). For specific configuration methods, refer to 《Linux 入门及使用》笔记汇总 ——5 基本系统 —— 附加知识点: Login to Cloud Host with SSH Alias
  • Alternatively, you can use the format ssh-copy-id username@IP, where "ten" and "username@IP" are equivalent in the following text

🔚By doing this, passwordless login is achieved and you can connect to the cloud host "ten" for testing

ssh ten

Detailed Steps of ssh-copy-id#

If you want to manually achieve the same effect as ssh-copy-id, you can follow these steps:

• Copy the local public key to the home directory of the remote server

scp ~/.ssh/id_rsa.pub ten:

• SSH login to the home directory of the remote server and append the content of the public key to the configuration file of the key

cat id_rsa.pub >> .ssh/authorized_keys
rm id_rsa.pub  # Can be deleted

• • authorized_keys can store multiple different public keys, with each line corresponding to one key
  • If the .ssh directory and authorized_keys file do not exist, create them manually
  • The key is the "permissions" of both: the .ssh directory should only be accessible by the owner, and the authorized_keys file should only have read and write permissions for the owner. Otherwise, passwordless login will be difficult to achieve

chmod 700 ~/.ssh
chmod 600 ~/.ssh/authorized_keys

🔚By doing this, passwordless login is also achieved

【Permission Requirements】

• Refer to man sshd
  •
  • For security reasons, if the permission settings do not meet the requirements, the public key file cannot be used

Additional Notes#

• Confirm that the "PubkeyAuthentication" in /etc/ssh/sshd_config on both the local machine and the remote server is set to "yes". After modifying it, you need to restart the sshd service: systemctl restart sshd.service
• If you want to login without a password to a specific user on the remote server, place the public key in the corresponding location in that user's home directory

Essence of Passwordless Login#

Process⭐#

• Local machine initiates SSH connection and sends its public key
• Upon receiving the public key, the remote server compares it with its own public key
• If they match, the server encrypts a "random string" with the public key and sends it back to the local machine
• The local machine decrypts the "random string" with its private key and sends the result back to the server
• If they match, the connection is established

❗ Refer to SSH 免密登录原理与实现—— 掘金 (in Chinese)

【This article mentions the specific processes of password login and passwordless login】

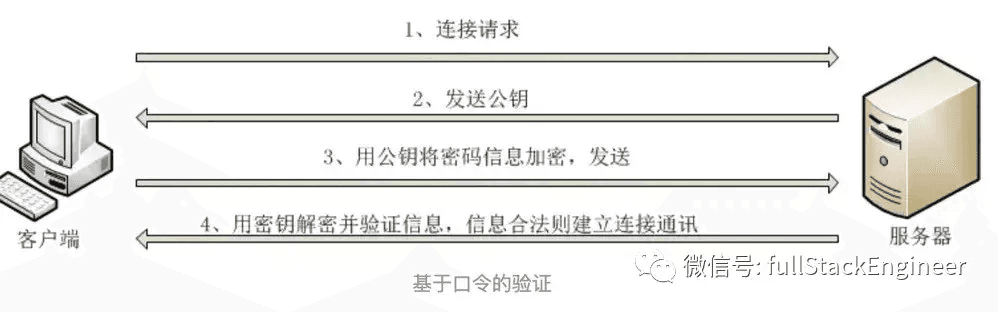

• Password Login
  •
  • The password is encrypted using the remote server's public key

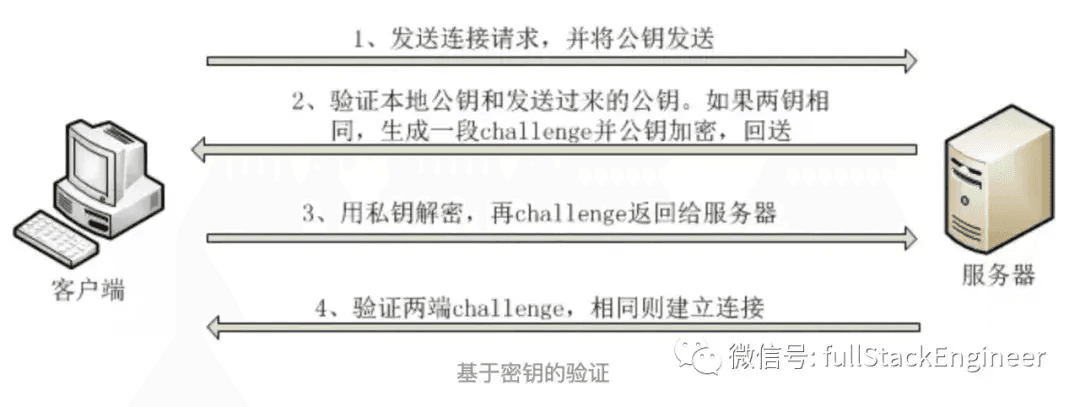

• Passwordless Login
  •
  • The private key is not exposed during the transmission process

Password login is simpler and faster during connection compared to passwordless login.
However, passwordless login is more secure:

• ① Passwords are easier to crack
• ② The article mentioned that passwordless login does not have the risk of "man-in-the-middle" attacks, but I do not fully agree
  • Both rely on the .ssh/known_hosts file to identify the machine
  • Passwordless login adds an extra step of matching public keys, making it more secure
  • 【Note】This is under the assumption that the local public key has not been stolen by a man-in-the-middle

Additional Notes#

• ssh -v ten: You can see a more detailed process
• There is a widely circulated image on the Internet, but it contains some details that are incorrect, as follows:
  •
  • The request information is not the username and IP❌, but the local public key
  • The public key does not store the IP [as it would pose a risk], it stores the username and hostname of the local machine
  • You can try deleting the user information [username and hostname] from the local or remote server's public key, and you can still establish a passwordless SSH connection
  • This shows that the remote server verifies the public key string itself!

Points for Consideration#

• What is the identity verification displayed when first logging into the cloud host?
  •
  • What is ECDSA key fingerprint? It is the key fingerprint from the remote server, and every machine with SSH installed has its own fingerprint
  • After entering "yes", the fingerprint information will be stored in the local .ssh/known_hosts file. If there is a spoofed machine during the next connection, it will raise an alert
  • If there is a spoofed machine [man-in-the-middle] attack during the first connection, congratulations, you have won
  • Refer to 验证远程主机 SSH 指纹—— 博客 (in Chinese)

Additional#

• Usage of ssh-copy-id

  • Directly copies the public key of the current user on the local machine to the authorized_keys file in the .ssh directory of the remote machine's home directory
  •
  • More simple and direct, can specify specific public keys, specific ports, etc.

• You can use man sshd_config to view the specific configuration instructions for sshd_config

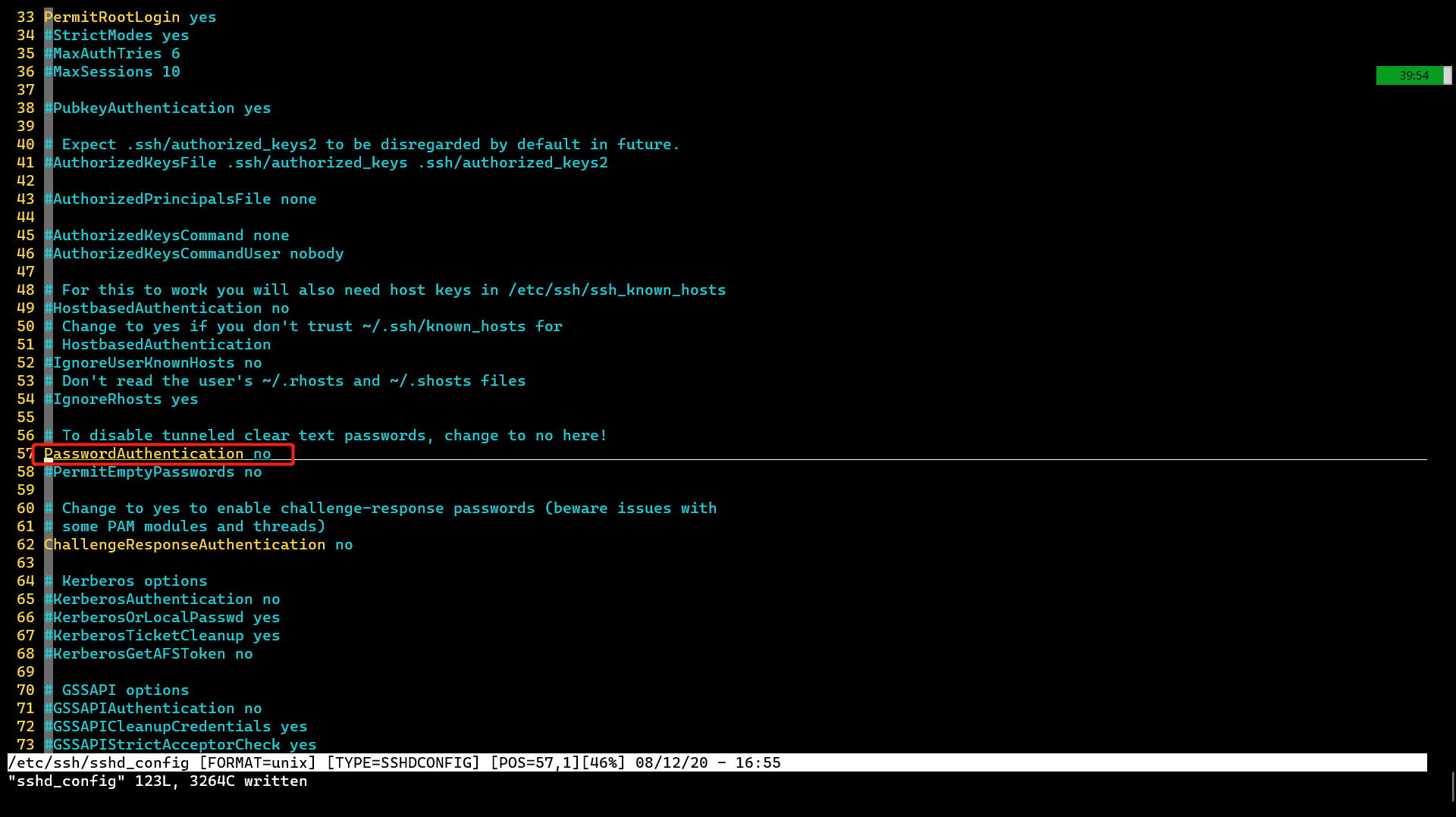

• ⭐ Disable password login by modifying "PasswordAuthentication" to "no" in /etc/ssh/sshd_config

  •
  • Restart the sshd service: systemctl restart sshd.service to make it take effect

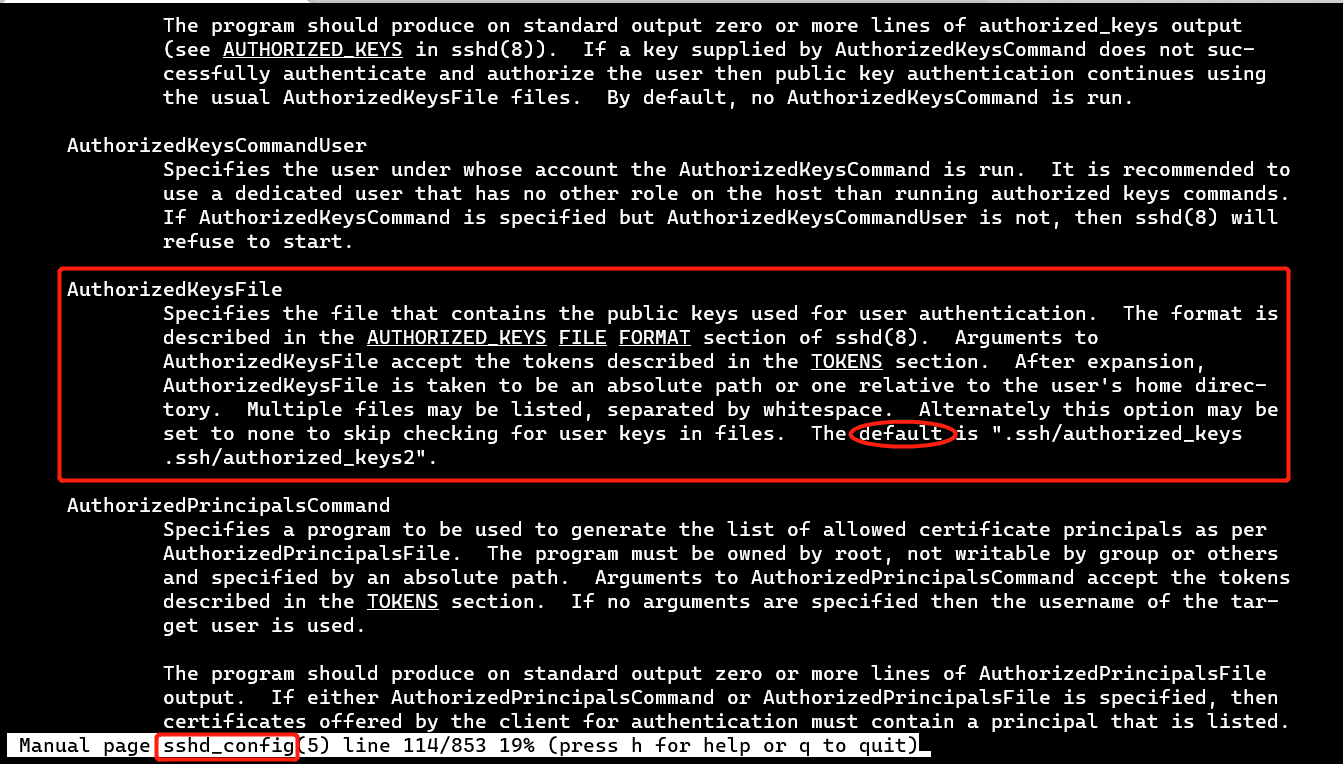

• The location of the public key can be set by yourself through "AuthorizedKeysFile" in /etc/ssh/sshd_config

  •
  • By default, the public key is searched in the corresponding location in the user's home directory

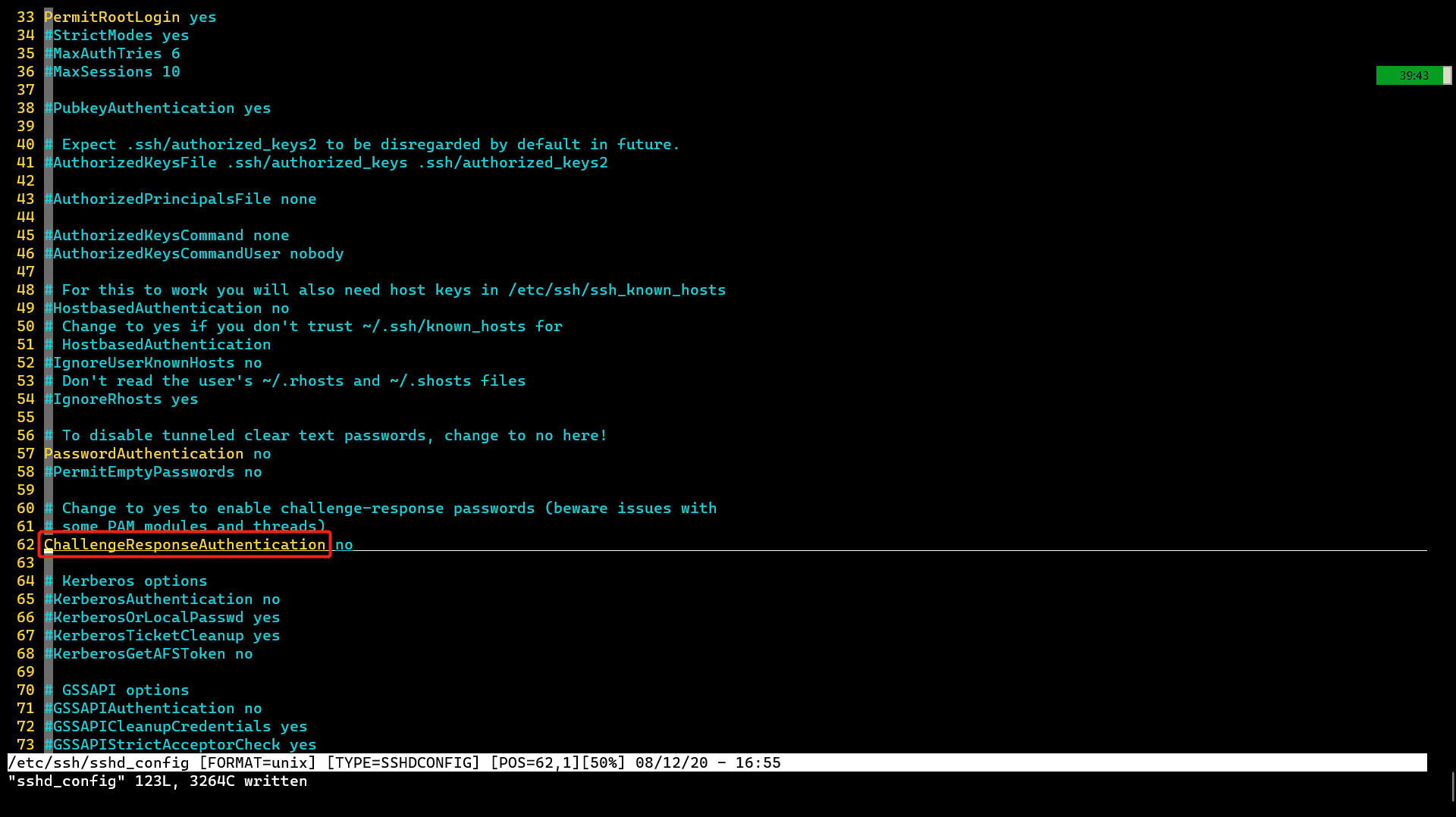

• What is ChallengeResponseAuthentication?

  •

ChallengeResponseAuthentication no
# Allow any type of password authentication! Therefore, any authentication method specified in login.conf can be used!
# But currently, we prefer to use PAM modules to manage authentication, so this option can be set to no!

References#

• SSH Login Without a Password——howchoo
• ssh 免密登录踩坑及解决—— 码农家园
  • It mentions that the permission of authorized_keys should be set to 644 because the file is owned by root; you can also change the owner of the file [personally, I think the latter is more secure]
• 文字接口联机服务器：SSH 服务器—— 鸟哥的 Linux 私房菜 (in Chinese)
• ssh 修改登录端口禁止密码登录并免密登录—— 简书 (in Chinese)
• SSH 用公钥验证可以阻止中间人攻击么？—— 知乎 (in Chinese)

  • No, it is avoided through the verification of known_hosts during the first connection
