Course Content#

Function Declaration and Definition#

• Declaration: Inform the system that this entity exists

  • The variable name of the input parameter is not important; it does not need to be specified at this time.

• Definition: How it is specifically implemented.

• Previously, function declarations and definitions were done simultaneously.

• Compilation order: from top to bottom, from left to right.

  •

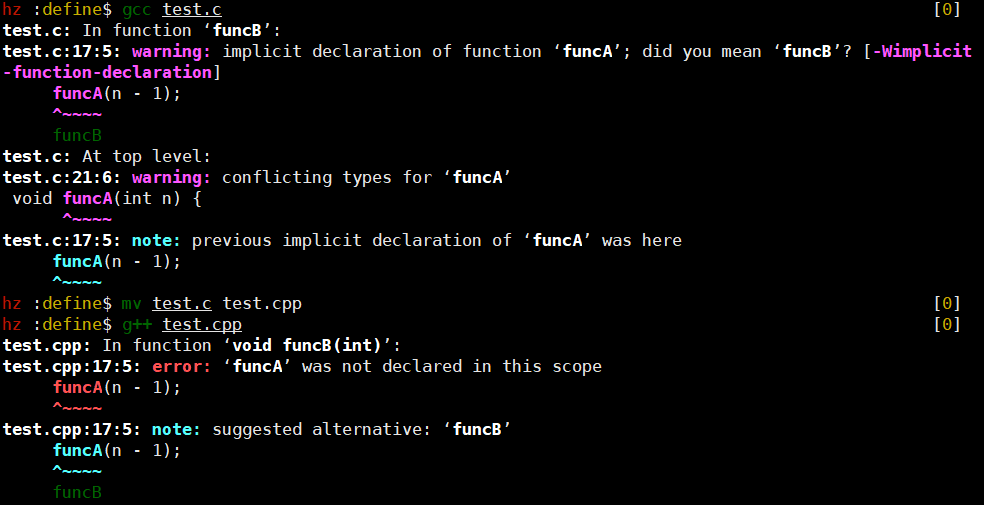

  • Above: gcc error message; below: g++ error message (perhaps g++ error messages are friendlier).

  • When looking at error messages, look from top to bottom; subsequent errors may be a chain reaction caused by the first error.

• Function undeclared and undefined errors occur in two periods.

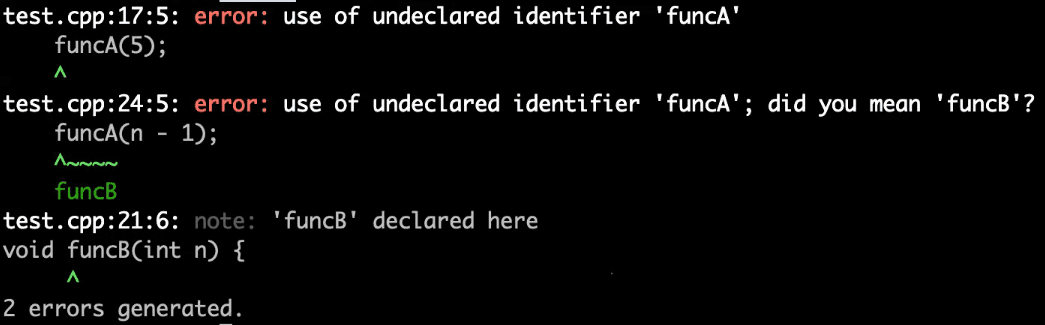

  • Function undeclared error - compilation process (mainly syntax checking).
    • g++ -c *.cpp generates the compiled object file.
    •

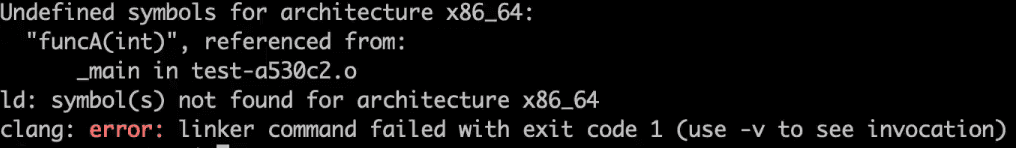

  • Function undefined error - linking process.

    • g++ *.o links to generate the executable program.

    •
  • The above error messages come from the captain's clang compiler; we are using the g++ compiler, so the display may differ.

• Function declarations can be made multiple times, but definitions can only be made once!

Header Files and Source Files#

• Specifications
  • Header files contain declarations, source files contain definitions.
    • They should not all be placed in the header file.
  • Header files and corresponding source files should have the same name.
• Conditional compilation in header files can avoid the problem of multiple inclusions of header files during one compilation process.

#ifndef _HEADER1_  // The name is best corresponding to the header file name, though there is no hard requirement.
#define _HEADER1_
...
#else              // Can be omitted.
#endif             // Must be present.

Engineering Development Specifications and Static Libraries#

• Can the double quotes "" after #include be changed to angle brackets <>?
  • Double quotes "": search from the directory where the executing code is located.
  • Angle brackets <>: search from the system library path.
  • Use g++/gcc -I to add the header file path to the system library path.
• When developing upwards:

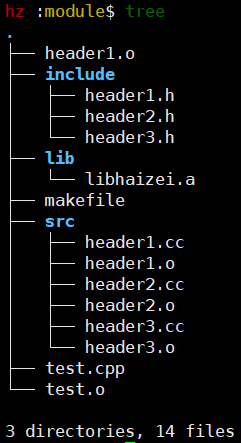

  • Provide others with the header files (include folder) and the corresponding object file package (lib folder).
  • Object file packaging:
    • Static library (.a)

// Packaging
ar -r libxxx.a header1.o header2.o header3.o

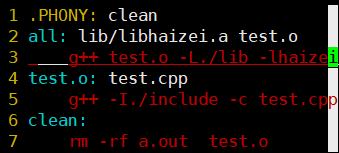

// Linking g++ *.o -L -l
g++ test.o -L./lib -lxxx
// xxx corresponds to

• • • Dynamic library (.so)
    • Both achieve the same functionality, which is packaging.
    • Difference between static and dynamic libraries - Niuke discussion.

Makefile Tool#

• Document compilation tool, similar to markdown.

• Encapsulates the compilation process, reducing the complexity of compilation during program development.

• Example

  •

  • .PHONY opens a virtual environment to avoid conflicts with existing clean files in the path when using make clean.

  • Can have encapsulated variable replacement operations.

Introduction to Google Test Framework#

• Unit testing

  • Also known as module testing, it is the testing work to verify the correctness of program modules (the smallest unit of software design).
    • In procedural programming, a unit is a single program, function, procedure, etc.
  • The framework follows the language: C++, Python, Java...

• Implemented in C++.

• CMake tool

  • Can generate makefile files based on the environment of the local machine.
  • Why not use makefile directly? Makefile has strong requirements for the environment.
  • The Google Test framework can be compiled by first using cmake and then make, paying attention to the library packaging location.

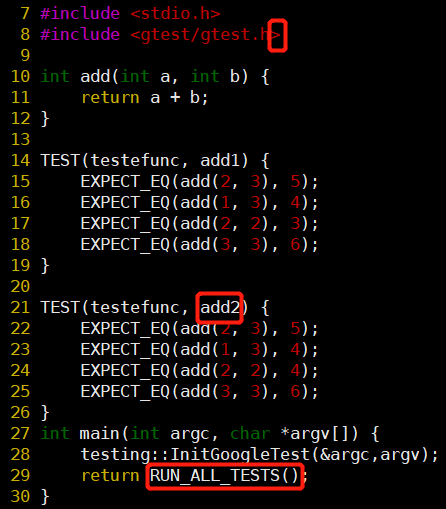

• Code (main.cpp)

  •

  • Uses the gtest.h header file enclosed in angle brackets <>.

  • add2 is just an identifier.

  • What is an assertion?

    • Used to catch the programmer's own errors: assuming a certain situation occurs, but if it does not occur, take appropriate action.
    • ASSERT_* version of assertions will cause a fatal failure and terminate the current function when they fail.
    • EXPECT_* version of assertions will cause a non-fatal failure and will not terminate the current function.

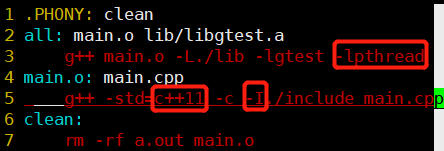

• Makefile

  •

  • Can use -std=xxx to specify the C++ version standard; it is actually not necessary to specify on the local machine.

  • Need to use -I to add the header file path ./lib.

  • Use -lpthread to additionally link the pthread library; the mac system will link it automatically.

  • 🆗 Questions

    •
    • ① The default standard is set according to the compiler version; c++11 is a relatively low version.
    • ② It may have used operations like make install, which included the header files into the system library directory.

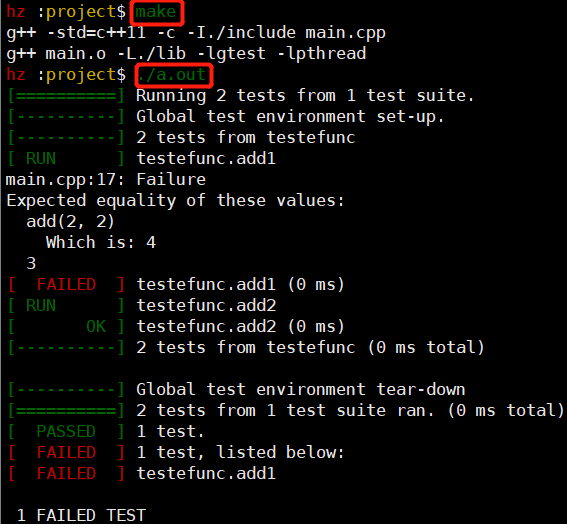

• Result

•

⭐ Implement Your Own Test Framework#

• Implemented in C.
• Need to implement the following three functions or macros

Version One: Compile and Display Test Results#

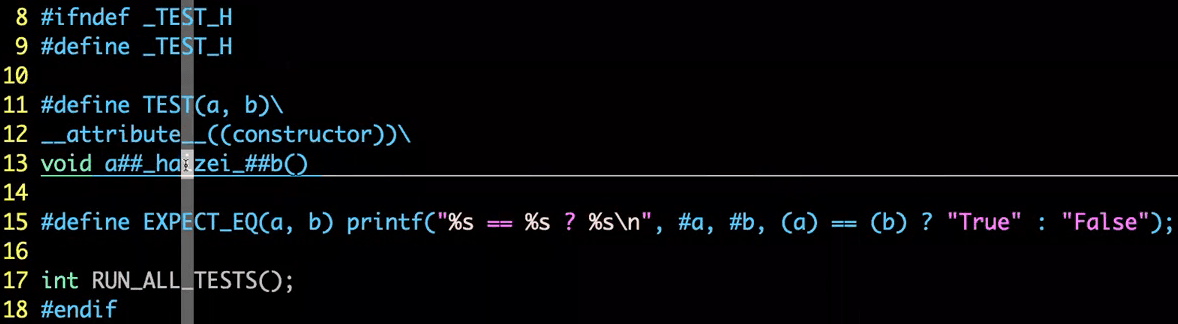

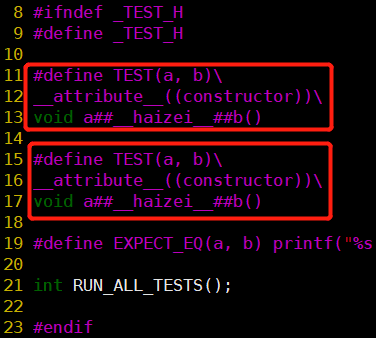

• haizei/test.h

  •

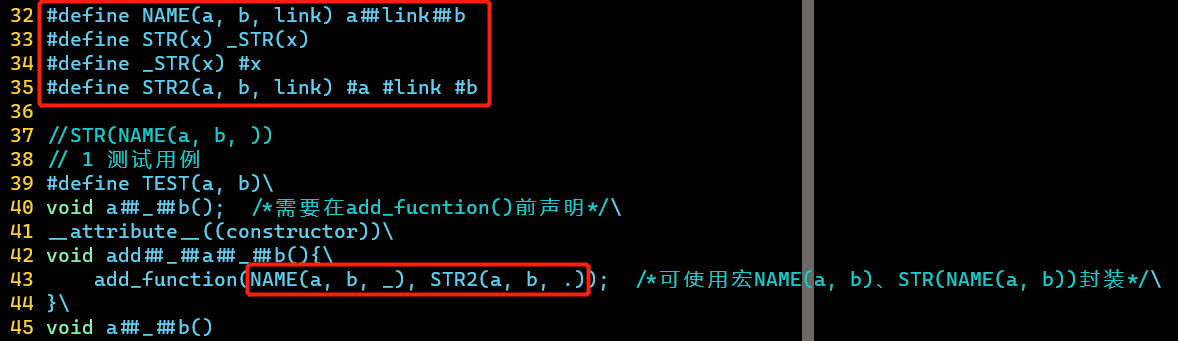

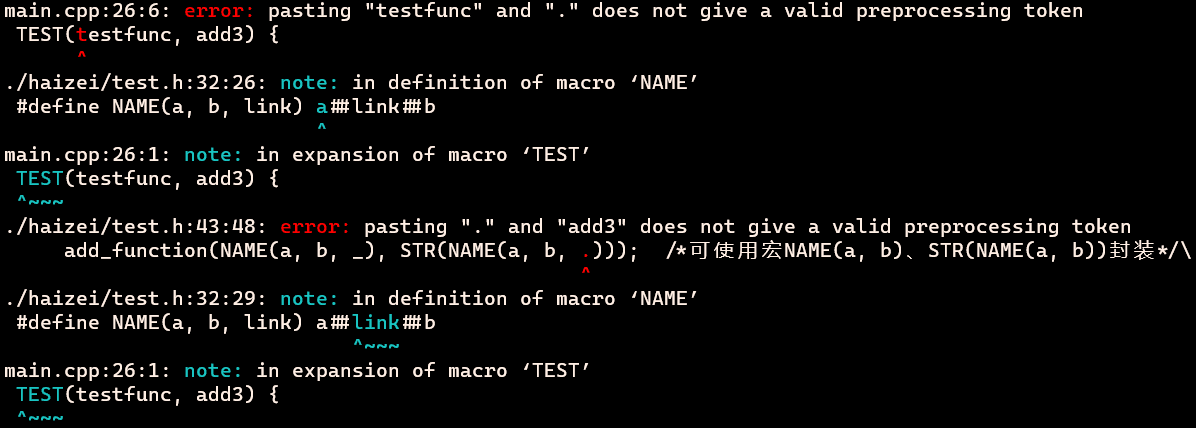

  • Cannot use a##.##b

    • Function names can only contain underscores, letters, and numbers; "." is not allowed!

  • a##haizei##b

    • Using haizei or similar special identifiers is to prevent a and b from directly connecting and causing function name conflicts.
    • For example, (test, funcadd) and (testfunc, add).

  • ⭐attribute((constructor))

    • Set function attributes to be used during function declaration or definition.
    • It allows the first function following it to be automatically called before the main function executes.
    • Otherwise, executing RUN_ALL_TESTS() in main.cpp will directly end the program without going through TEST.
    • Refer to Function Attributes attribute((constructor)) and attribute((destructor)) - CSDN.

• haizei/test.cc

  •

  • Just need to define it symbolically; compilation can proceed.

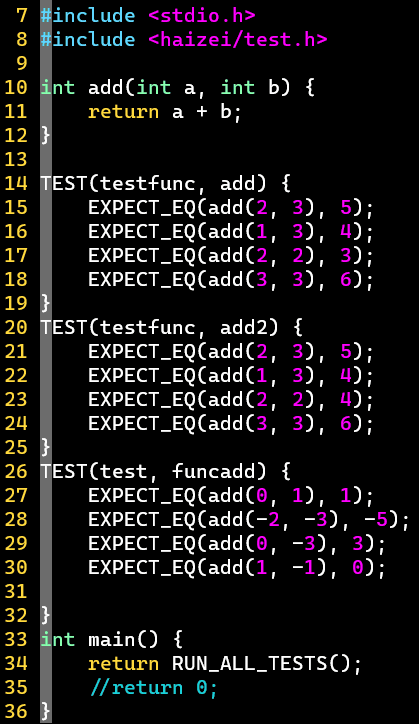

• main.cpp

  •

  • Three groups of TESTs.

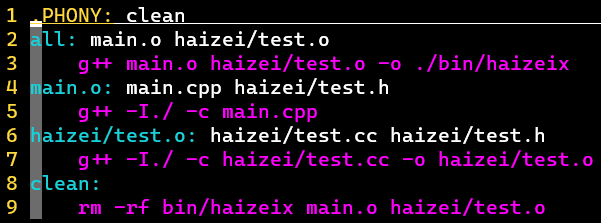

• Makefile

  •

  • Using make allows for quick compilation.

  • Pay attention to the use of -o, allowing object files and executable programs to be custom-named and placed in specified directories.

  • Note the specification of the folder where the files are located.

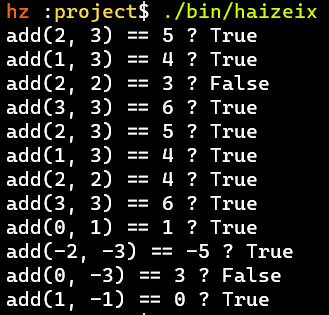

• Test Results

  •

• ❓ In the current version, whether the return from the main() function is RUN_ALL_TESTS() or 0, the test results will be displayed. How can RUN_ALL_TESTS() control whether the output is displayed or not?

Version Two: RUN_ALL_TESTS() Switch#

• The original intention of implementing the framework - switch control.

• Points to record:

  • How many groups of test cases.
  • The function names corresponding to the test cases.
  • The functions corresponding to the test cases.
    • Use function pointer variables.
    • Use an array to record function pointers.

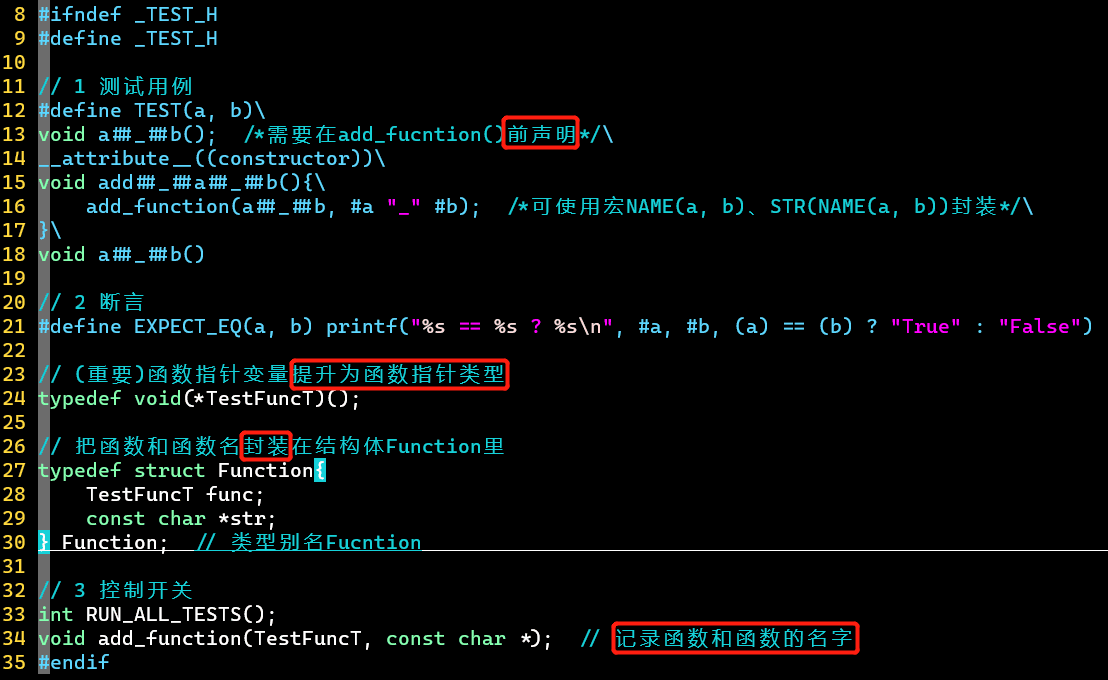

• haizei/test.h

  •

  • In TEST, use add_function to record functions into global variables before the main function executes.

  • The second usage of typedef: elevating a variable to a type.

  • Use of structures: encapsulating function pointers and function names.

• haizei/test.cc

  •

  • Use of global variables.

  • Use of strdup: Refer to C Language strdup() Function: Copy String.

Use malloc() to allocate space to copy the string, returning its address, i.e., the string pointer;
Remember to use free() to release it at the end.

• • main.cpp and makefile remain unchanged.
  • ❗ The switch control has been implemented; optimizations for display, assertions, etc., can now be made!

Version Three: User-Friendly Optimization#

① Add Color to Output#

• Refer to Colored printf - Blog.

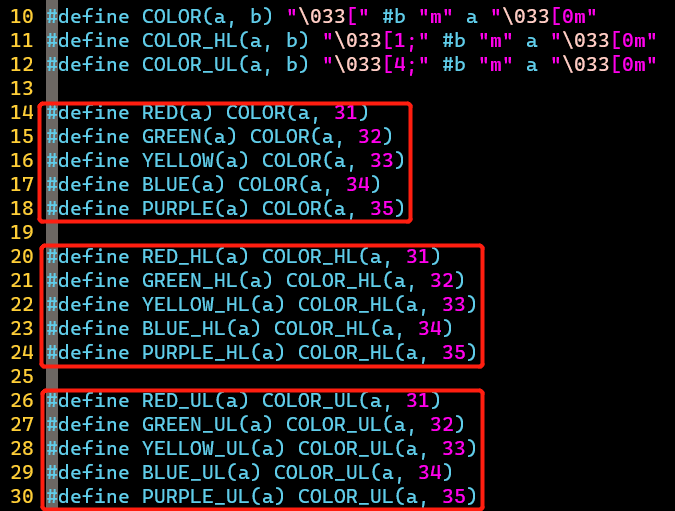

• Define color settings as macros in the header file haizei/test.h.

  •

  • COLOR normal.

  • COLOR_HL highlight.

  • COLOR_UL underline.

  • Connect multiple strings with spaces.

  • Note! There should be no spaces around ";" in color control characters.

Correct: "\033[1;""31" "m" "%s\n"
Invalid setting, nothing: "\033[1; ""31" "m" "%s\n"

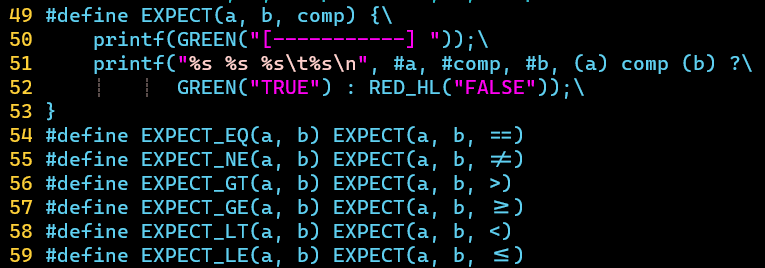

② Add Assertion Macros#

• Check for not equal, greater than, greater than or equal to, less than, less than or equal to.

• Specific implementation for each macro:

• Unified management type: Similar to defining color macros, encapsulate common code again.

  •
  • Master the use of #.

③ Count and Display the Number of Successful and Failed Test Points for Each Group of Tests#

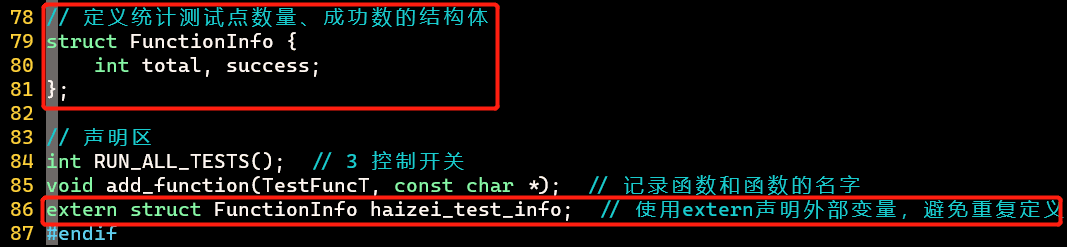

• haizei/test.h

  •
  •

  • Define a structure for statistics, unified management, better encapsulation.

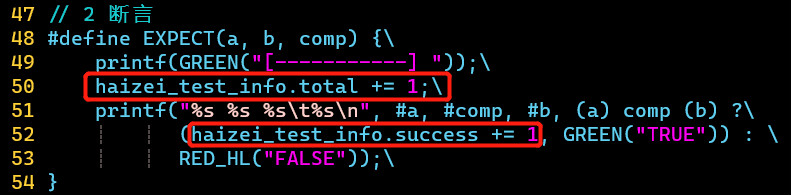

  • Perform statistics at the assertion points.

  • Use extern to declare structure variables here because:

    • The assertion points in the header file use this variable, so a declaration of this variable is needed.

int i is both a declaration and a definition; extern int i is just a declaration.
struct FunctionInfo haizei_test_info is both a declaration and a definition.
Just declare it with extern at the front.

• • • But do not define variables in the header file, as it may lead to redefinition issues.
    • Refer to Correct Use of extern Keyword in C - CSDN.

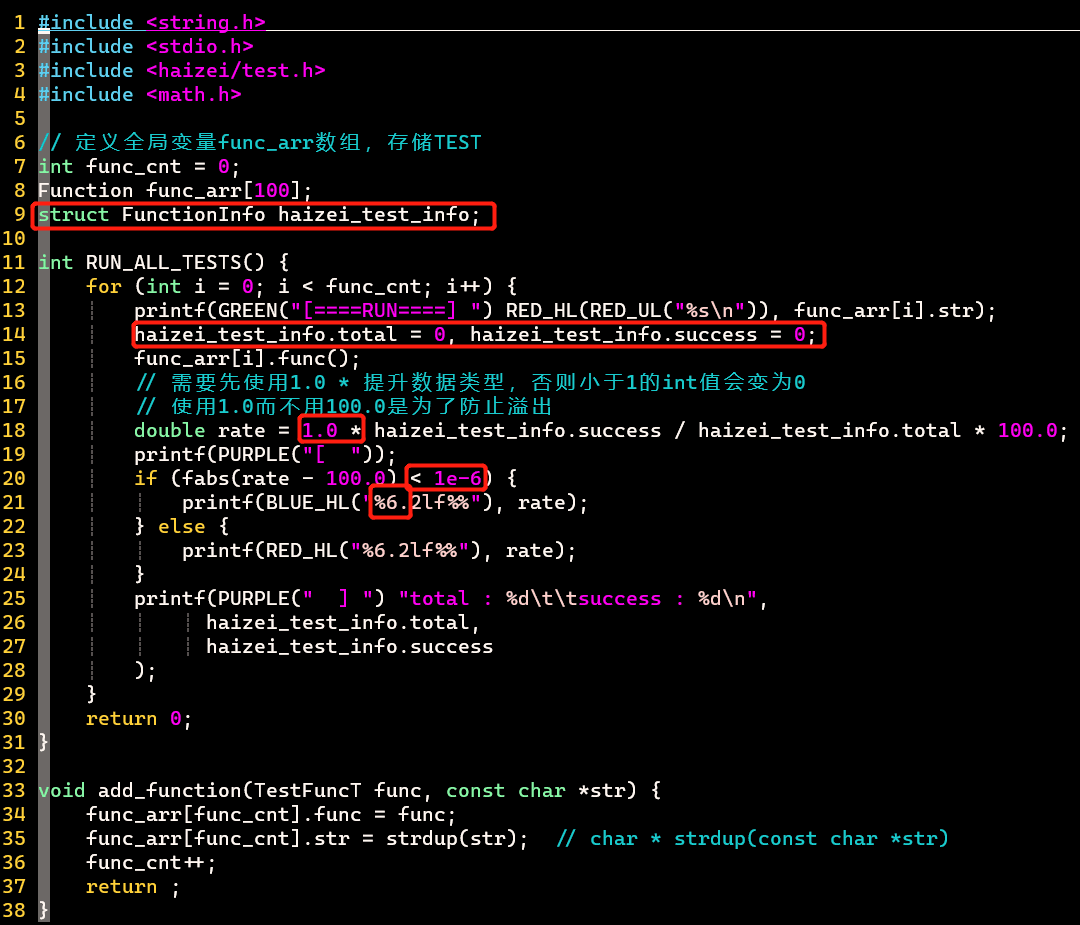

• haizei/test.cc
  •
  • Define and declare the haizei_test_info variable.
  • 1.0 elevates the type; 100.0 placed in front may overflow.
  • 100% case judgment: Use a very small value and fabs for floating-point comparison; success count == statistics count.
  • Center alignment effect.
    • %m.nf: Output occupies m columns, with n decimal places; if the value width is less than m, left-fill with spaces.
    • %-m.nf: Output occupies n columns, with n decimal places; if the value width is less than m, right-fill with spaces.

④ ⭐ Display Detailed Information of Failed Test Points#

• Mainly write the LOG macro to be executed in the assertion macros in the header file.

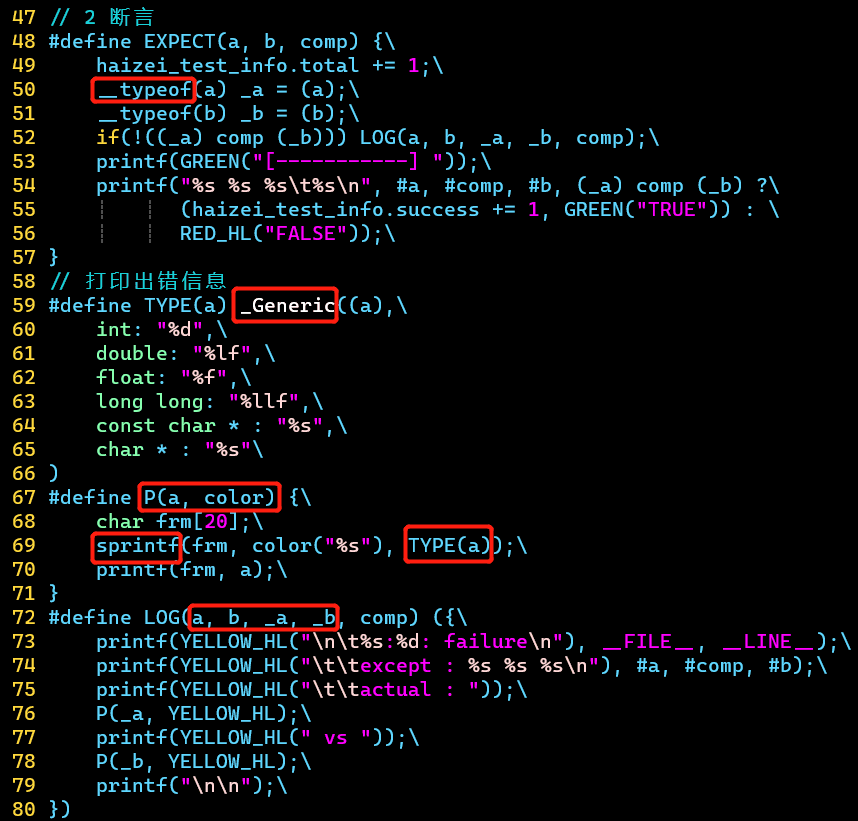

• haizei/test.h

  •
  • ⭐ The result value type of the actual part is uncertain; define a generic macro.
    • _Generic(a, replacement rule): Implement corresponding replacements based on the return type of a.
    • _Generic is a keyword in C, not a macro! It will not be replaced with the corresponding type during preprocessing.
      • ① Be very careful when using it with COLOR macros!
        • During the compilation phase, a string cannot be concatenated with an unknown (_Generic()).
      • ② Cannot use C++ compiler.
      • ❗ See below for Error One and Error Two.
    • Refer to cpp_reference.
  • Use typeof to define additional variables.
    • All operations are done through additional variables to avoid multiple calculations caused by + and ++ operations.

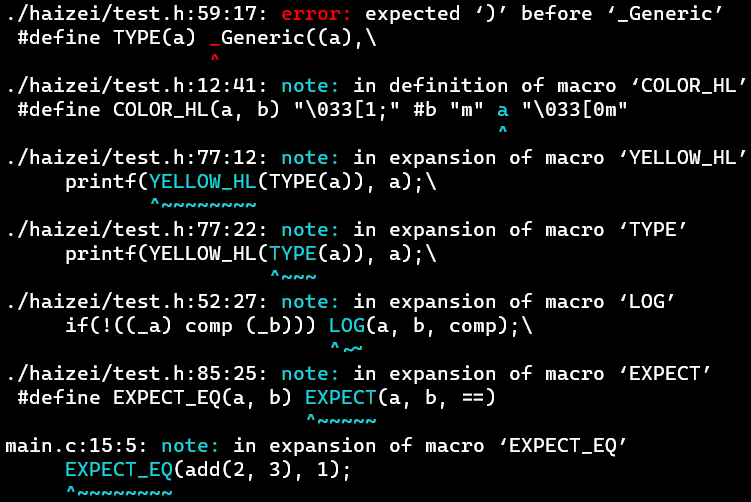

  • Error One (Compilation Phase -c)
    •
    • Corresponding erroneous writing: putting TYPE(a) inside the YELLOW_HL macro.
      •
      • The red box ② can output normally, but will have no color.
      • If wrapped in a color macro like red box ①, it will cause a compilation error.
        • Preprocessing main.c will not cause an error.

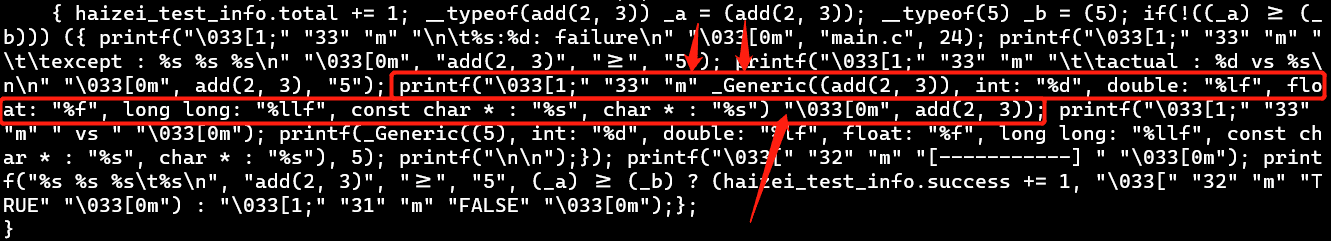

        • Check the preprocessed code of red box ②, as follows:
        •
        • Reason: For the code after macro replacement, ("string" _Generic() "string") will cause a compilation error because the compiler does not know what _Generic() is at that time.
        • _Generic() needs to know the result at runtime, and during syntax checking, it cannot concatenate strings with something unknown, hence the error.
        • This is not significantly related to the first input parameter type of printf() being const char*, but type mismatch will raise a warning.

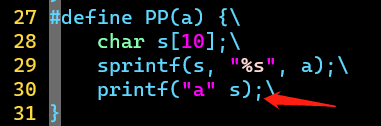

        • A simple example below may clarify:
          • Header file
          •
          • Source file
          •

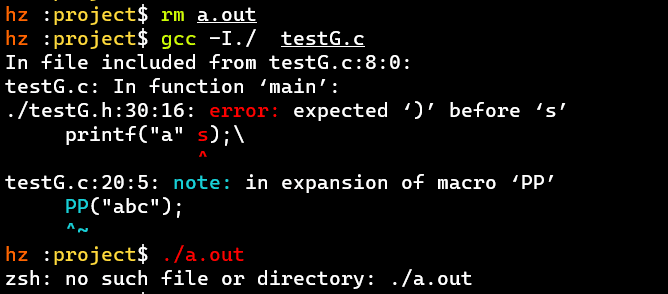

          • Compilation
          •
          • The same error occurs.
          • Because during the syntax checking phase, the compiler does not know what s is, and concatenating it with the string "a" will cause an error.
          • The error message suggests removing s, adding parentheses before s.
    • Therefore, wrapping _Generic() with sprintf() is a clever way; it has no issues during compilation and works normally at runtime when it has values.

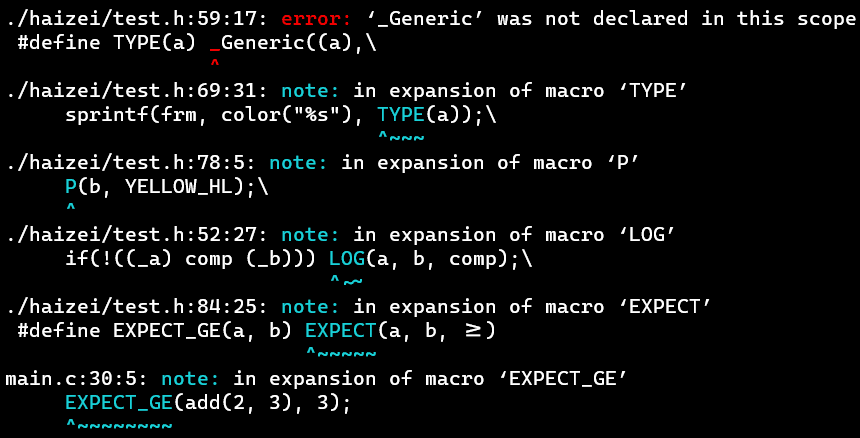

  • Error Two (Compilation Phase -c)
    •
    •
    • Key information in the second image's error.

error: '_Generic' was not declared in this scope.

*

    * _Generic only supports C language (C11), not C++.
        * Refer to [How to Enable _Generic Keyword](https://www.thinbug.com/q/28253867) - ThinBug.
    * Change all file extensions to C language.
        * main.cpp → main.c; test.cc → test.c.
    * Modify makefile, see below.

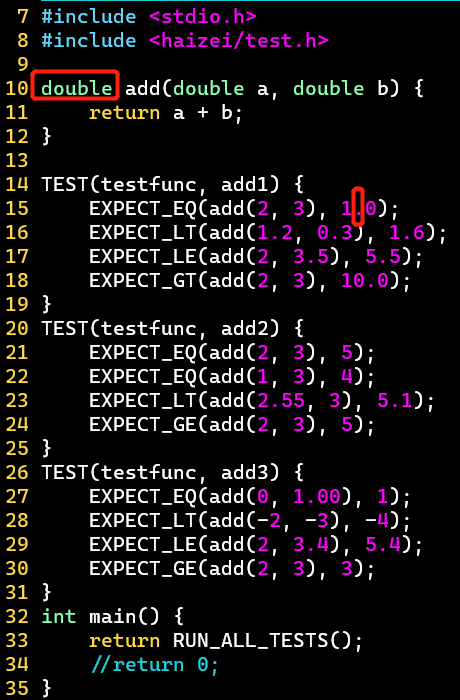

• main.c

  •
  • Test double type data to verify the effect of the generic macro.
    • Changed the function parameter type to double.
    • In fact, double comparison cannot be done directly with ==; in the header file, use a difference with a very small value for comparison.

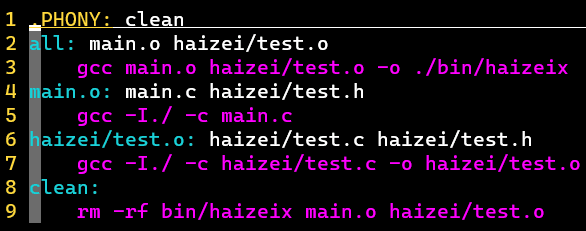

• Makefile

  •

  • Use gcc instead.

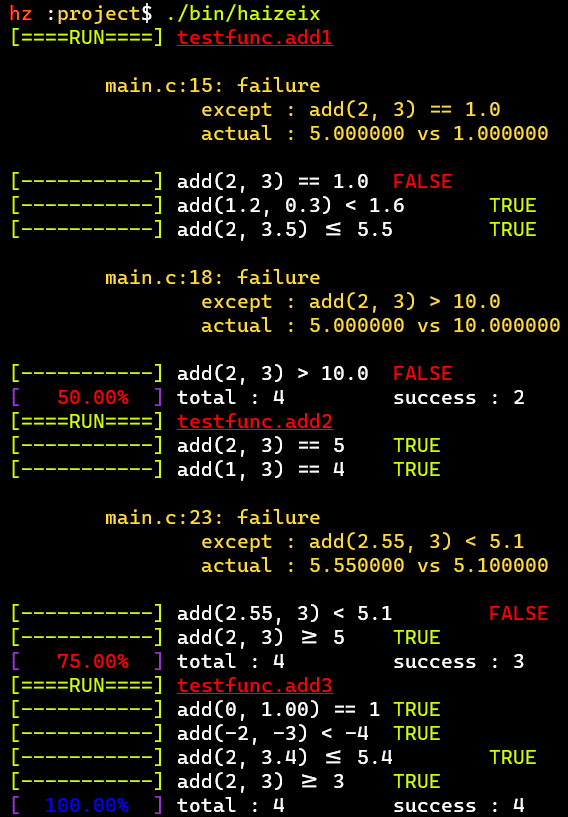

• Output

  •

⑤ Global Variable Storage for Functions Has No Limit on the Number of Test Cases#

• Static arrays: Fixed space size is allocated before running, and the stored physical space is contiguous.
• Linked lists: Conceptually sequential, but do not require physical storage to be sequential.
  • Composed of nodes, containing: data field, pointer field.
  • Occupies space that changes dynamically.
  • However, the following method is even more powerful: it can give any structure a linked list skeleton.
• ⭐⭐Linked List Skeleton

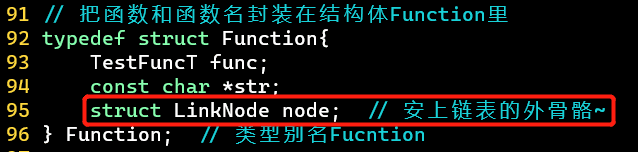

  • haizei/test.h
    •
    • Directly add a node structure variable to a structure, i.e., the skeleton of the linked list.
    • The node records the address of the next node (the next TEST's node).
    • Header file containing linked list nodes haizei/linklist.h.

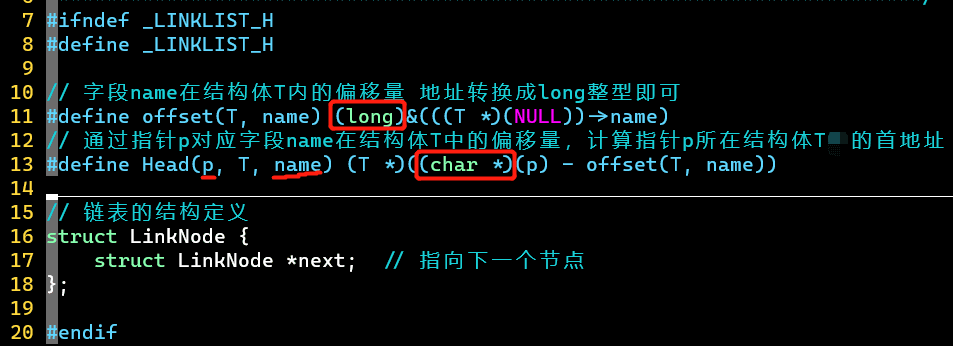

  • haizei/linklist.h
    •
    • next points to the address of the next node.
      • But actually wants to access the func and str fields of the next TEST.
      • Can access the two fields by accessing the address of the next structure and then indirectly accessing the two fields.
    • How to get the address of a structure.
      • Calculate the offset of the field name in structure T through pointer p.
      • offset macro!
        • Use a null pointer to get the address of the name field.
          • (T *)(NULL)->name gets the name variable.
          • & gets the pointer of type T*, which stores the address.
        • Convert to long type to get the offset.
          • long type changes its range based on system bitness, corresponding to pointer size.
      • Head macro!
        • Convert the address of pointer p to char* type.
        • This way, ±1 offsets by the smallest unit of 1 byte.
        • p is a pointer, name is the field name corresponding to pointer p in structure T.

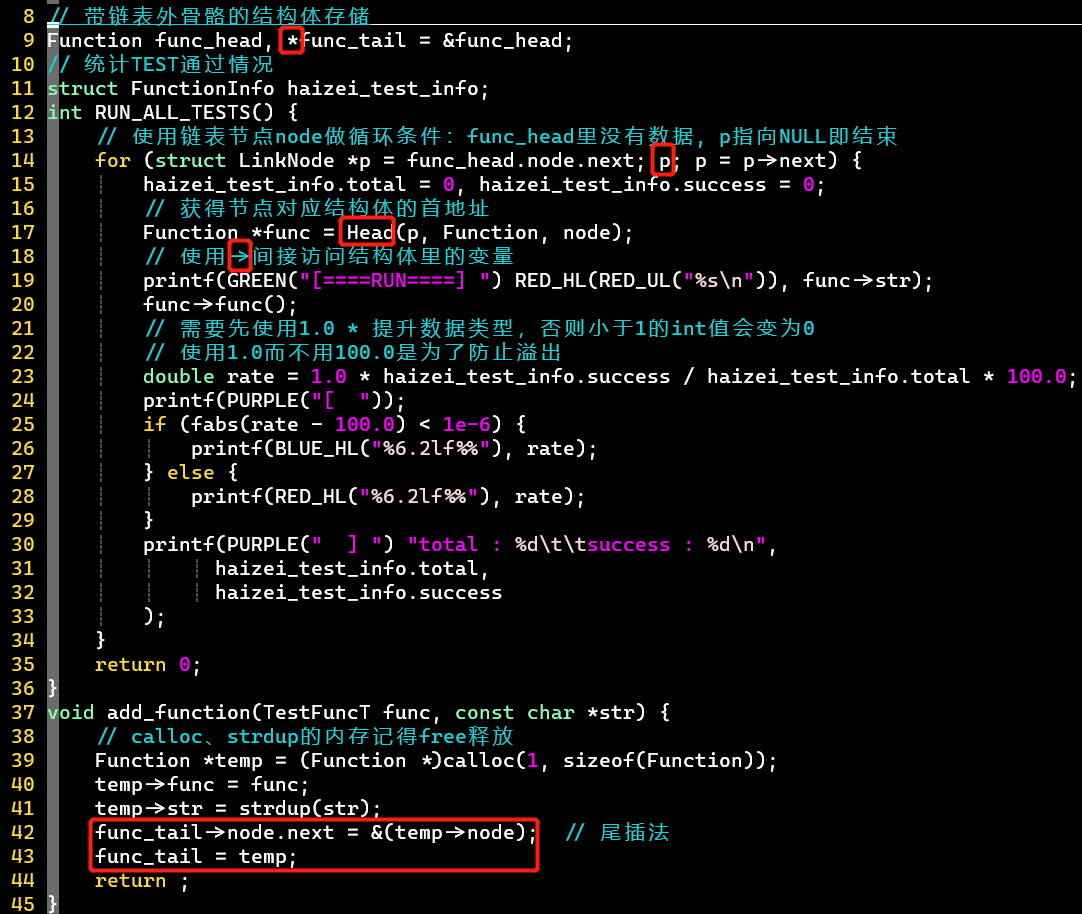

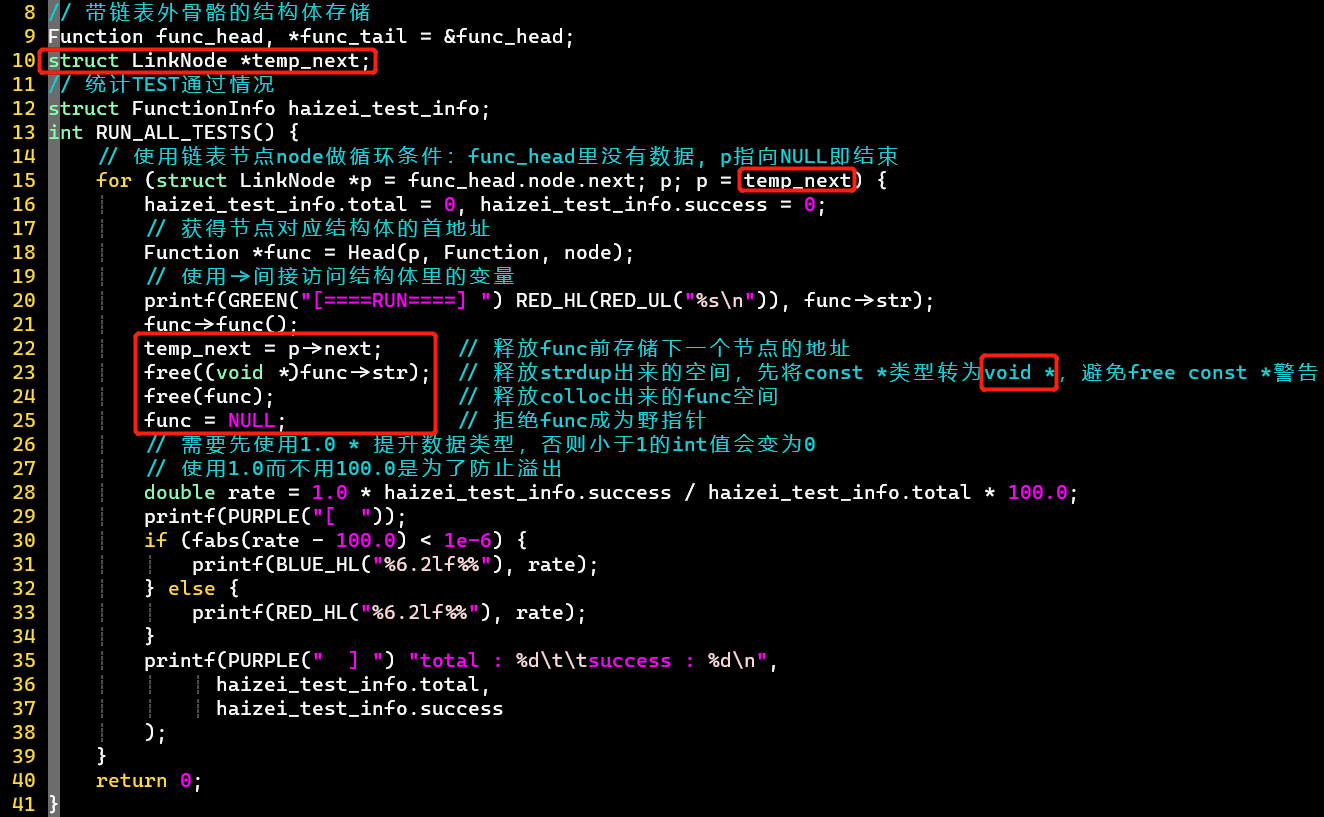

  • haizei/test.c
    •
    • Tail insertion method, define a tail node pointer func_tail.
    • Get the address of the structure, use -> to indirectly access the variable.
    • The main difference between malloc() and calloc():
      • The former does not initialize the allocated memory space, while the latter initializes the allocated space to 0 by default.

// Dynamically allocate a block of memory of specified size in the heap to store data.
void* malloc (size_t size);
// Dynamically allocate num blocks of continuous space of size in the heap, initializing each byte to 0.
void* calloc (size_t num, size_t size);

• • • Also applicable to strdup, copying a string to newly allocated space and returning its address.
      • The space allocated by malloc in strdup is easily forgotten to be released: Dangerous strdup Function.
    • The space for calloc and strdup needs to be freed by the user.
      •
      • Refer to the above image.
      • ① Before freeing the func space of calloc, save the address of the next node.
        • Use p->next.
      • ⭐② Free structure variables from inside out.
        • func->str is allocated by strdup.
        • func is allocated by calloc.
      • ③ After freeing, set the pointer to NULL to avoid becoming a dangling pointer.
      • When freeing the space pointed to by func->str, it is necessary to use (void *) to cast.
        • Otherwise, there will be a warning about freeing const char*, refer to: In C, why do some people cast the pointer before freeing it? - Stackoverflow.
        • As mentioned in the link above, freeing const types is indeed strange.
      • Pay attention to details when freeing structures; see later points on the details of freeing structures.

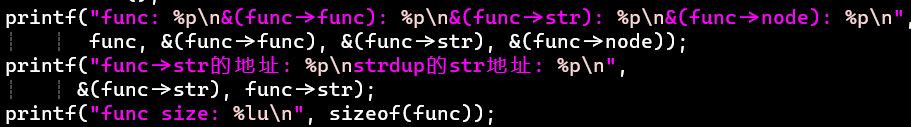

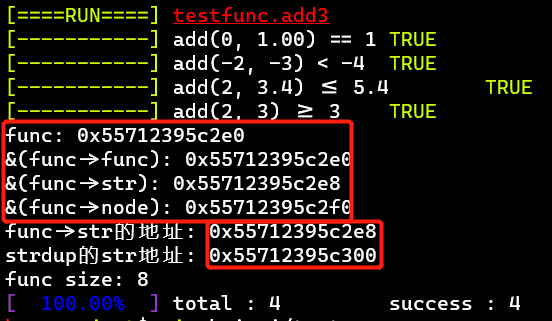

      • Check the addresses of variables in func.
        •
        •
        • Aligned to 8 bytes.
        • Printing func->str prints the address allocated by strdup, while printing &(func->str) prints the address of the member str in the structure object.

⑥ Macro Optimization for Function Pointer Variables and Function Names#

• Method One: Macro Replacement Optimization NAME, STR2.
  •
• Method Two: Macro Nesting NAME, STR, _STR.
  • STR(NAME(a, b, _)).
  • However, cannot use '.' to connect to generate function names; can use '_'.
  • a##.##b will cause an error during preprocessing as follows:
    •
    • Passing a.b as a parameter or variable name is illegal → . has special meaning.
    • Refer to error: pasting “.” and “red” does not give a valid preprocessing token - StackOverflow.

Additional Knowledge Points#

• Place function declarations and the main function at the top, and function definitions at the bottom to make the code framework and logic clearer.

• Simple engineering file structure specifications.

  • Use the tree tool.
•

• Rules of make:

  • If a dependency file in the makefile has been modified:
    • Directly use make, and related files will automatically recompile without needing to use make clean for cleanup.
  • If only the makefile has been modified and you want to regenerate object files:
    • Generally, you need to use make clean first, then use make to regenerate new object files; otherwise, only the top-level all output will be regenerated.

• Executable programs are generally placed in a fixed directory: bin.

• Macro internal comments:

  • Single-line macros: can directly use // comments after.
  • Multi-line macros: can only use /.../ comments.

• Header files should only write function declarations.

• Macro nesting:

  • When there are # or ##, macro nesting cannot effectively expand; an additional layer of macro is needed for conversion.
    • However, only the places with # and ## stop expanding; other places will continue to expand.
  • Refer to: Macro Usage Techniques in C/C++ (Macro Nesting/Macro Expansion/Variable Argument Macros) - CSDN.

• ⭐attribute((constructor)), see Implement Your Own Test Framework - Version One.

• Handling Long Lines in C Language - CSDN.

• ❗ Details of # in macro definitions:

  • Stringizing operator.
  • Function: Converts the parameter name in the macro definition into a string enclosed in a pair of double quotes.
  • Can only be used in macro definitions with input parameters and must be placed before the parameter name in the macro definition body.

• Differences between typeof(), __typeof(), and typeof() - CSDN.

  • It is recommended to use the one with an underscore.

Points for Consideration#

• Can macro functions be redefined?
  • Function definitions placed in header files may cause function redefinition issues when compiled multiple times in different files.
  • However, placing a macro defined as a function in the header file is fine?

    • It's fine.

    • Redefining macro functions is not an issue, as shown below.

      •

      • For this situation, avoid function name conflicts (a##_haizei##b).

  • However! Macros cannot be redefined, meaning previous definitions cannot be modified.
• Macro definitions do not need to consider the order of definitions! && Macro nesting issues.
  • When a macro is called, it is directly replaced.
  • For macro nesting situations, refer to Order of Macro Replacement in C - CSDN.

#define _ToStr(x) #x
#define __ToStr(x) _ToStr(x)
#define EarthQuake 9.0

int main(){
    printf("%s\n", _ToStr(EarthQuake);   // EarthQuake
    printf("%s\n", __ToStr(EarthQuake);  // 9.0
    return 0;
}

• • Replacement order:
    • From outer to inner, but stops expanding when encountering # or ##.
    • First type: →#EarthQuake→"EarthQuake".
    • Second type:
      • First layer replacement: →_ToStr(EarthQuake)→_ToStr(9.0).
      • Second layer replacement: _ToStr(9.0)→"9.0".
  • Nested definitions: #define __ToStr(x) _ToStr(x).
  • Nested calls: __ToStr(EarthQuake).
• ❗ Details of freeing structures:
  • free(p) does not change the value of variable p itself; after calling free(), it will still point to the same memory space, but this memory is now invalid and cannot be used.
    • Refer to C Language free() Function: Release Dynamically Allocated Memory.
  • All dynamically allocated spaces must be released individually, freeing from the structure inside out.
    • Structures are in heap space, and variables within structures are also in heap space; member variables must be freed first, followed by the structure itself.

Tips#

• aka means "also known as" in Chinese.
• Don't just watch the captain show; think about how to optimize? How to develop? How to turn it into your own knowledge points?
• If you can't hold on, that's when you need to persist; often, this is the most valuable.
• When encountering compilation errors, look at the error messages from top to bottom, as subsequent errors may also stem from earlier ones.

Course Notes#
